Rebody Z3 to Kobra build thread

DaveP

Zorg Guru (III)
British Zeds
Joined
Mar 26, 2016
Messages
675
Location
Reading
Model of Z
Z3 2.2 Kobra rebody (see pic)

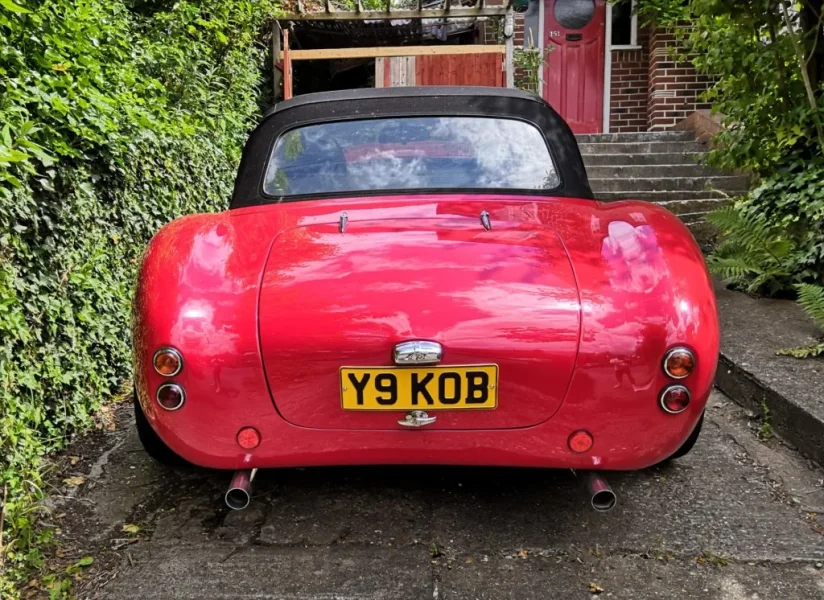

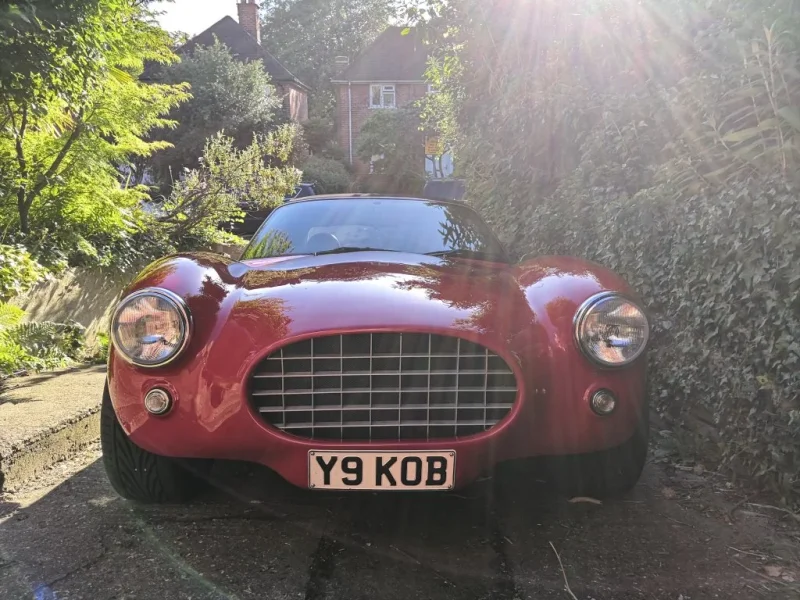

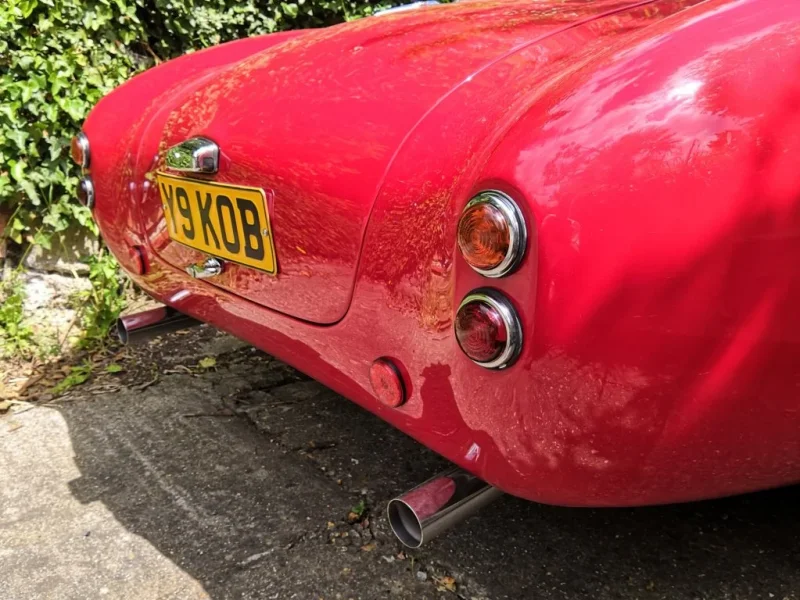

So in recent weeks have changed the side, stop-tail and indicators to retro Lucas L488 lamps. They not what I had in mind originally but so much better quality with glass lenses.

D4D848CD-C89C-45BF-8FD5-FCFA40B83C31.jpeg EA5E501E-866F-49E2-A9A9-4AA03D653D1B.jpeg 99374D66-A894-48C4-81D6-2DB82D024F50.jpeg

Eagle eyed among you will see that the stop lights are a different shade of red. That will teach me to buy from more than one supplier. All replaced now.


DaveP

Zorg Guru (III)
British Zeds
Joined
Mar 26, 2016
Messages
675
Location
Reading
Model of Z
Z3 2.2 Kobra rebody (see pic)
82208833-DF25-4172-A182-AE991276045F.jpeg 909BDDE7-311B-4B13-A908-A9DAA54955FB.jpeg B9053DDF-E2F5-454E-953A-2F3530D8399E.jpeg 42477263-06ED-458C-9A33-BD3070A54296.jpeg

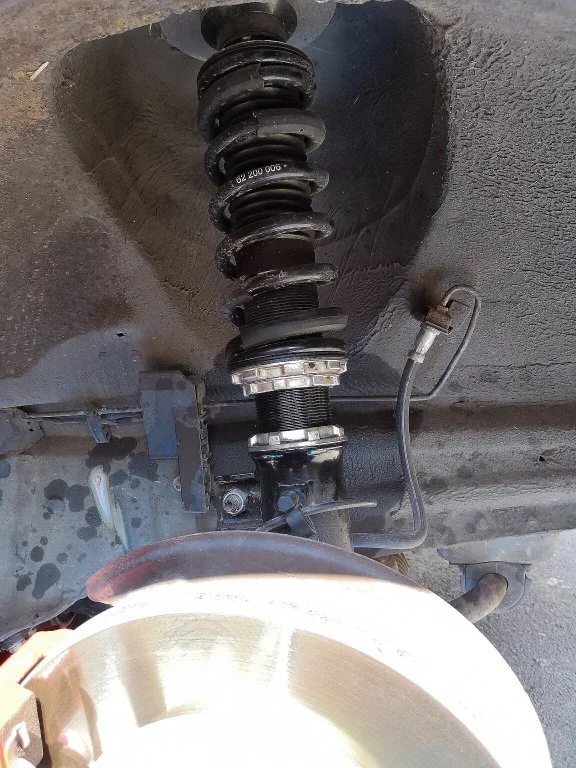

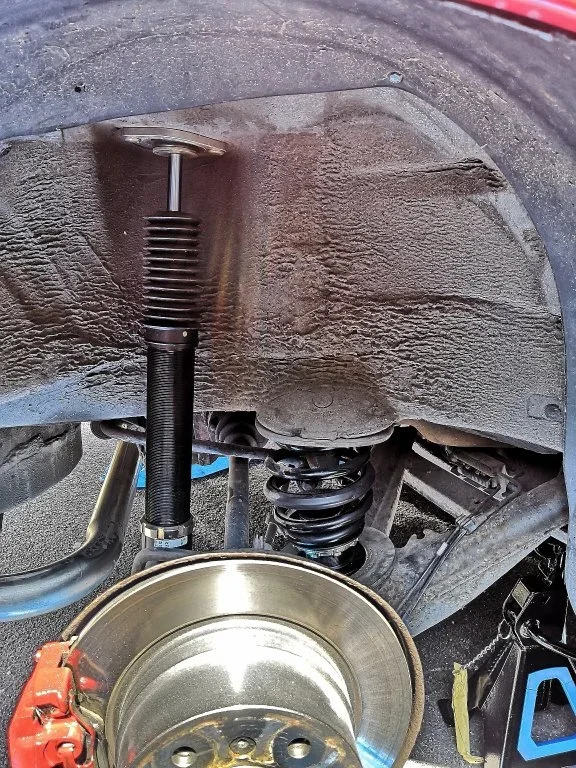

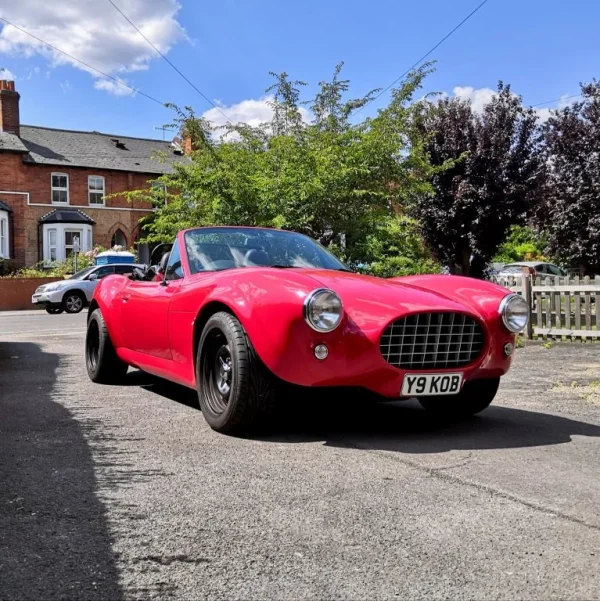

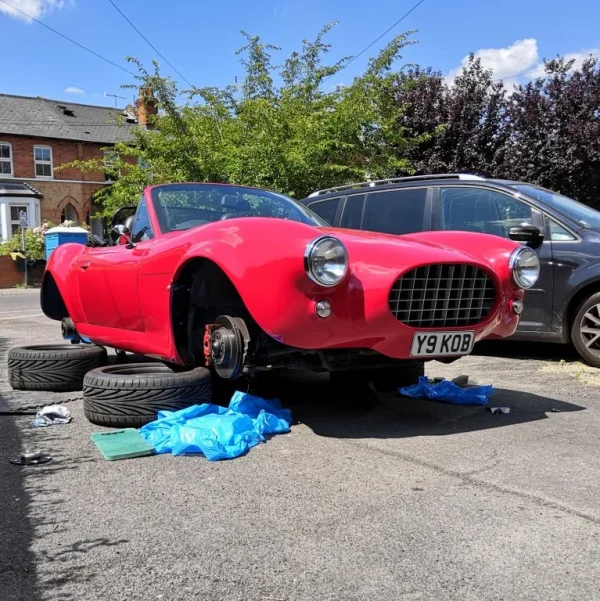

And today I spent a few hours tinkering with the BC Racing coilovers as the car was too low for Reading roads. Have lifted the car an inch and a bit all round now and it rides better already.

I was pleased with the state of the coilovers after 15 months. Look almost like new (with a bit of a spring clean).


t-tony

Zorg Expert (II)
Supporter
British Zeds
#ZedShed
Joined
Dec 31, 2013
Messages
43,608
Location
Torksey Lock,Lincoln, England
Model of Z
E89 Z4 23i Auto
Still like the steelies Dave, just different mate:thumbsup:

Tony.


Grumps

Well it's still a German!
Supporter
British Zeds
Joined
Apr 27, 2014
Messages
19,539
Location
Ravenshead
Model of Z
Merc E350 Sport Coupe (well it's close enough)
That's looking great. :thumbsup:


DaveP

Zorg Guru (III)
British Zeds
Joined
Mar 26, 2016
Messages
675
Location
Reading
Model of Z
Z3 2.2 Kobra rebody (see pic)

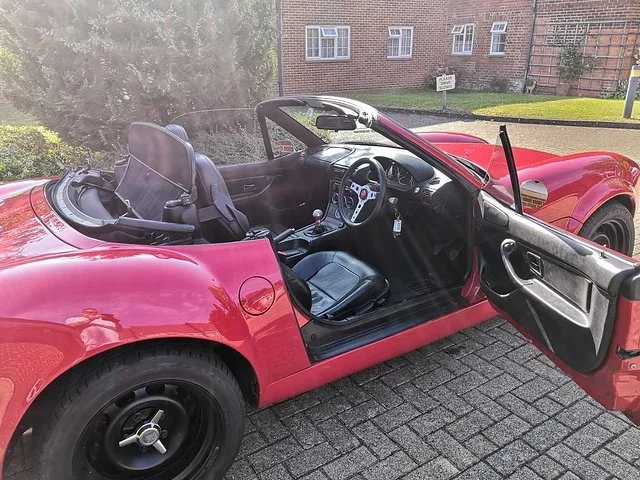

Interior shot today. Have kept it very easy by staying pretty stock.

Just a Momo steering wheel and gear knob (in red of course) to break up the interior. I removed the factory roll hoops as they don’t suit the car in my view. Having a wind deflector is a must on the fast roads though.

Next job is to put in better rear speakers (vibe slicks as Sean has) and following that replacing the Z3 seats with..... ......
......
......
MGTF seats.

Light the torches and get the rope ready :)

Dave



DaveP

Zorg Guru (III)
British Zeds
Joined
Mar 26, 2016
Messages
675
Location
Reading
Model of Z
Z3 2.2 Kobra rebody (see pic)
Not posted a pic in quite a while.

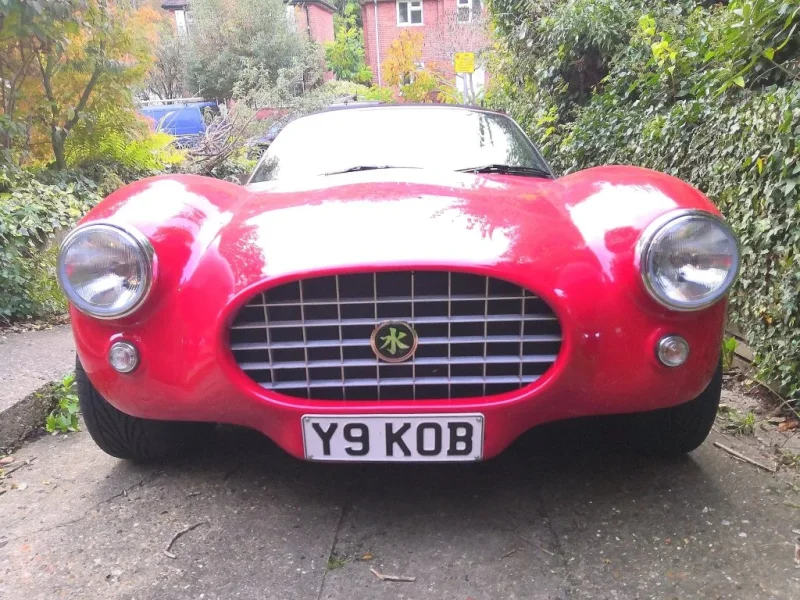

I decided to badge the kobra. The symbol is a very close alternative to the Chinese letter K. It also means water in that language. As I am an Aquarius i thought it fitting. It confuses people as to the car type even more now.


Z Victor 1

Formerly "Ontiken1"
Supporter
British Zeds
Joined
May 4, 2015
Messages
3,999
Location
Ripley,Derbyshire.
Model of Z
Z4 2.2i 'Kiwi'
Looking good, I think the reason a lot of people are disparaging about 'kits' is because you see a lot of poorly executed examples. Poor work, bad decisions on 'finishing' parts, colour etc. A friend of mine did an NF kit for an old MG. He did a pretty good job mechanically, but made a wooden dash himself (very badly) and then had the car sprayed a 'blingy' metallic turquoise colour. It just didn't look right.


Geophys

Zorg Guru (I)
British Zeds
Joined
Dec 16, 2016
Messages
221
Location
Withington, Hereford
Model of Z
Z3 2.2i Sport
I think that looks really good, well finished and executed. I would also change the seats, something in a tuck and roll would suit the car better in my view.


DaveP

Zorg Guru (III)
British Zeds
Joined
Mar 26, 2016
Messages
675
Location
Reading
Model of Z
Z3 2.2 Kobra rebody (see pic)
I think that looks really good, well finished and executed. I would also change the seats, something in a tuck and roll would suit the car better in my view.
Thanks for that.

I have planned to swap seats with some from an MGTF. They fit and look good in this type of car. Also have headrests which is a must request from co-driver.

Not been able to due to lack of skill and current restrictions.


DaveP

Zorg Guru (III)
British Zeds
Joined
Mar 26, 2016
Messages
675
Location
Reading
Model of Z
Z3 2.2 Kobra rebody (see pic)

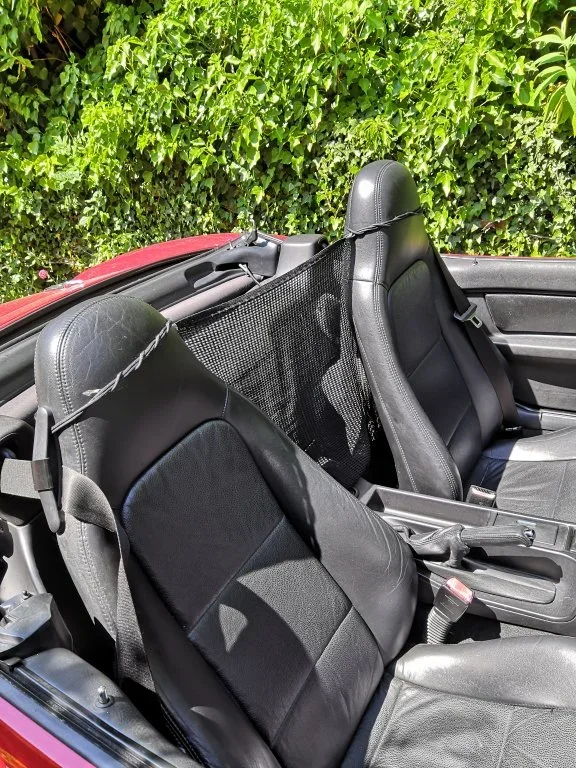

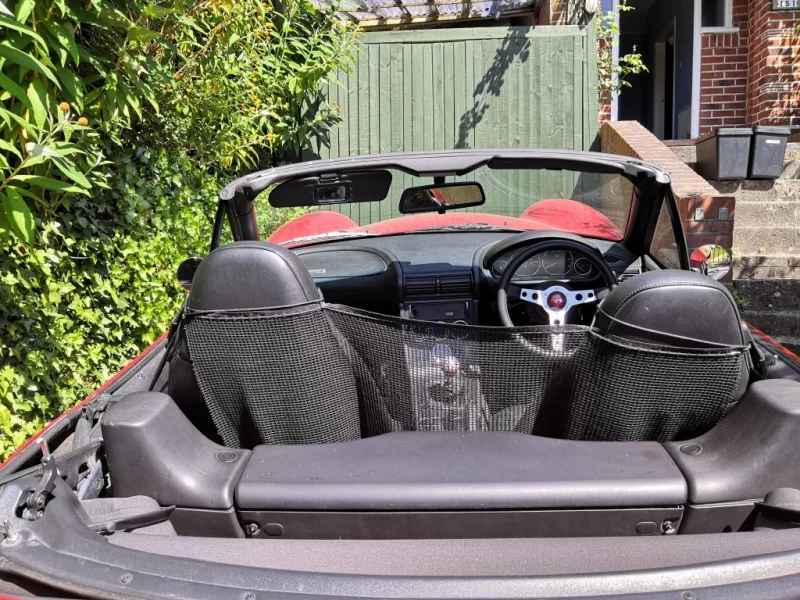

Wind Deflector v2.

So I love a cheap as chips solution to a problem.

I had factory roll bars with deflector but took them out as didnt like the Kobra with them.

I then bought the folding down (non roll hoops) deflector but it made getting roof up and down a royal pain in the Cummings.

So cheap solution was half a piece of army surplus type scrim netting in black cut to reac across between headrests and seats and two lengths of paracord to hold top and bottom.

Its not pretty maybe but it works well. And takes 2-3 mins to put in and out. It also stores in rear console.

I may be eccentric but stuff like this keeps me focused and sane.

Dave

Additional note is that it looks a bit crooked and that because I have the front lift seat kit on the driver sise but not the other. Shows the difference.


Last edited:

t-tony

Zorg Expert (II)
Supporter
British Zeds
#ZedShed
Joined
Dec 31, 2013
Messages
43,608
Location
Torksey Lock,Lincoln, England
Model of Z
E89 Z4 23i Auto
Can’t fault it Dave, if it works it works!

Tony.


t-tony

Zorg Expert (II)
Supporter
British Zeds
#ZedShed
Joined
Dec 31, 2013
Messages
43,608
Location
Torksey Lock,Lincoln, England
Model of Z
E89 Z4 23i Auto
Take a close look at the indicators and it looks like orange bulbs fitted.

Tony.


DaveP

Zorg Guru (III)
British Zeds
Joined
Mar 26, 2016
Messages
675
Location
Reading
Model of Z
Z3 2.2 Kobra rebody (see pic)
@DaveP i've just noticed your front doesn't have the lip, how did you get that as I prefer that look.

Also are the clear indicators MOT legal? I like those as well.
Hiya Zag2. The front indicators have orange bulbs (as noted by Tony) so are ok for the MOT.

The didn’t want the front lip so when I had the kit layed up I asked for it to be removed before transit. That said it would have been very easy to cut it off once delivered. The cut line is exactly where the edge of the front lip begins.

I also had the bonnet scoop removed. Just to be a pain in the butt.

Dave


Pingu

Zorg Guru (III)
3rd Party Trader
Joined
Dec 8, 2011
Messages
1,451
Take a close look at the indicators and it looks like orange bulbs fitted.

Tony.
The MOT tester at the BMW garage tried to fail my 330 on non-orange indicators. He pointed to my silver bulbs behind a clear lens and said that they were a fail. I asked him what colour they were when they flashed. He admitted that he hadn't looked. Muppet.


t-tony

Zorg Expert (II)
Supporter
British Zeds
#ZedShed
Joined
Dec 31, 2013
Messages
43,608
Location
Torksey Lock,Lincoln, England
Model of Z
E89 Z4 23i Auto
I had the same bulbs in my Eunos.

Tony.


MisterP007

German-Italian-British Mix - What could go wrong?
Supporter
British Zeds
Joined
Jul 24, 2020
Messages
1,009
Location
Blackham
Model of Z
Z3 2.8
Preparation first.

As I would be keeping this many years after the build I thought it best to get under and take a look. The underside was looking just right and the suspension components at the rear solid. The front bushes left a bit to be desired and brakes needed a refresh. I also need to have the ability to make the car height adjustable due to the the body change. So went and ordered some goodies !

Brembo brake disc and pads all round and BC racing coil-overs. Meyle front control arms and lollipops too.
That is just car porn!
