Centre Console Blank query
- Thread starter Mazza
- Start date
.....going to wire them to the interior lights.
My Touareg had them where you could have them on permanently and I found it distracting to be honest Malc.
Tony.
I think if you were driving down the road with a RED glow coming from your car interior you could possibly get some farther strange proportions , ( like how much for a quicky
)
It would be more than strange if they propositioned a 60yr old for a quickie. How can a 60yr old do anything quick?I think if you were driving down the road with a RED glow coming from your car interior you could possibly get some farther strange proportions , ( like how much for a quicky
Mate when you get to 60 there are somethings you don't hang about withIt would be more than strange if they propositioned a 60yr old for a quickie. How can a 60yr old do anything quick?
HELP........
I have been sitting here for a couple of hours wondering how the connections are made....
Do you run just the LED live up to the courtesy light...up the drivers A pillar and across to the fitting and join it to the black wire and just put the LED earth somewhere convenient.
The wiring diagram for the interior lights is confusing as it appears to include connections via the ECU ???
I have been sitting here for a couple of hours wondering how the connections are made....
Do you run just the LED live up to the courtesy light...up the drivers A pillar and across to the fitting and join it to the black wire and just put the LED earth somewhere convenient.
The wiring diagram for the interior lights is confusing as it appears to include connections via the ECU ???
From memory (which isn't that good) I connected, soldered mine to the wires in the drivers side A pillar, I think the live was a brown wire. I'm sure there is a 'how to'on this site that I followed.

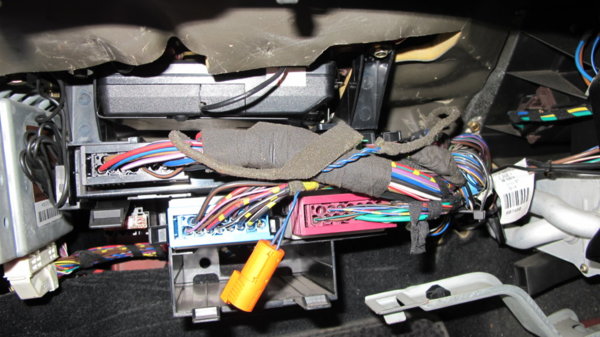

I connected mine to the wire that comes out the module behind the glove box. Can't remember the colour, sorry but the wiring diagram should tell you. Saved taking the trim off the A pillar. Good luck
@Mint I think that ties up with this diagram I found created by @littlefeller on an old thread.
Just need to identify plug A104 and terminal 4 brown/black wire !
I think the glove box is coming off tomorrow.Hi
Just need to identify plug A104 and terminal 4 brown/black wire !
I think the glove box is coming off tomorrow.
Hi
Worth it Malc, they give a nice effect. I used some "diffused" blue led strips form a Walmart somewhere ...............
My car had original footwell lights which made connection easy.
They do look rather classy IMO.
Tony.
My car had original footwell lights which made connection easy.
They do look rather classy IMO.
Tony.
Oooh.....like the look of that
The following info courtesy of @Sean d ( I think). Identifies the wire to connect to. X13252 being the ref on the circuit diagram above.......may have just cracked it

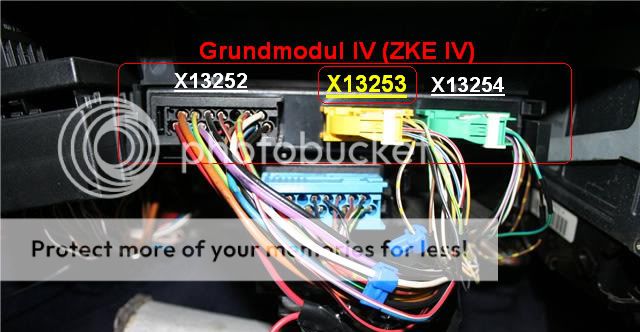

behind your glove box is the ZKE unit with 3 plugs. Black, Yellow, Green. (yellow may be changed to a purple plug on facelift)
On the left hand side is a black plug which is X13252 connection
You will need to link in to terminal 4, which is the Brown/Black wire. (Bottom row of plug 4th from right) This outputs +4 to +12 volts giving the brightening/dimming result.
The following info courtesy of @Sean d ( I think). Identifies the wire to connect to. X13252 being the ref on the circuit diagram above.......may have just cracked it
behind your glove box is the ZKE unit with 3 plugs. Black, Yellow, Green. (yellow may be changed to a purple plug on facelift)
On the left hand side is a black plug which is X13252 connection
You will need to link in to terminal 4, which is the Brown/Black wire. (Bottom row of plug 4th from right) This outputs +4 to +12 volts giving the brightening/dimming result.
I was going to use that cable for the remote opening of my boot, however its much easier to use the a post connection for footwell lightsOooh.....like the look of that
The following info courtesy of @Sean d ( I think). Identifies the wire to connect to. X13252 being the ref on the circuit diagram above.......may have just cracked it
behind your glove box is the ZKE unit with 3 plugs. Black, Yellow, Green. (yellow may be changed to a purple plug on facelift)
On the left hand side is a black plug which is X13252 connection
You will need to link in to terminal 4, which is the Brown/Black wire. (Bottom row of plug 4th from right) This outputs +4 to +12 volts giving the brightening/dimming result.
- Joined
- Nov 25, 2012
- Points
- 178
- Location
- Newport, South Wales,UK
- Model of Z
- Z3 M43 1.8 (1999) and Z4 E85 2.0i (2007)
I spliced my footwell leds into the interior light circuit running up the windscreen A pillar, not enough room behind the plastic cover to use a scotchlock, best to solder then insulate with tape.
I could be wrong, but I think the wire goes from term 4 of the black connector through the loom and up the A pillar to the courtesy light. But are you saying that there is a connector on the wire in the A pillar, that would make it easier to make the connection to?
Yes, that's right Malc, pin 4@Mint I think that ties up with this diagram I found created by @littlefeller on an old thread.
View attachment 95202
Just need to identify plug A104 and terminal 4 brown/black wire !
I think the glove box is coming off tomorrow.
@jonco @abh29 I received the two mini switches today. They are quite small !!!
The switch action does seem to be quite positive though.
The cut out would not interfere with the lugs on the back of either size blank
Could fit two on one blank, one above the other .
Blade width 3.74mm
Now I have been convinced to connect my footwell leds to the courtesy light, I dont actually need these, so if you want one to try out, PM me with your address and I will post one to you.
I also have 2 of the smaller blanks spare if you need any, ( the larger one in the photo has gone back in the car now)
The switch action does seem to be quite positive though.
The cut out would not interfere with the lugs on the back of either size blank
Could fit two on one blank, one above the other .
Blade width 3.74mm
Now I have been convinced to connect my footwell leds to the courtesy light, I dont actually need these, so if you want one to try out, PM me with your address and I will post one to you.
I also have 2 of the smaller blanks spare if you need any, ( the larger one in the photo has gone back in the car now)
