Rebody 250 California build thread for dummies

Pond

Zorg Guru (II)
British Zeds
Joined
Dec 26, 2016
Points
124
Location
Spaldingski, Lincs
Model of Z
Z3 project and E89 Z4
The panel fit might well be different when the body shell is supported by the chassis rather than standing on the ground.
I am only doing the bits I HOPE can't move. I would love to sort the sills out, but know they can only be done when on the car.

I want to do everything I can before fitting the kit, as it gets a lot more compromised then and I want to keep the mess in the garage down to a minimum. Time will tell!

Last edited:

Pond

Zorg Guru (II)
British Zeds
Joined
Dec 26, 2016
Points
124
Location
Spaldingski, Lincs
Model of Z
Z3 project and E89 Z4
Today I decided to get the Z3 running again, as it hasn't turned it's crank in over 6 months. Last time was when a friend (from another forum) overhauled the vanos, changed the oil and filter, brake fluid, etc. I also put new plugs in at the same time; that was in early November.

I checked all the wiring changes I have made so far and taped the ends of anything I overlooked just in case.

Stuck the charged battery back in and connected it up. Interior light came on so thought happy days. I taped some elephant trunking on the exhaust and routed that out the door.

Turned the key to the second position, the dash lights flickered on then all went dead. Everything!

I spent most of the day checking every fuse on the car (there are a lot. None had blown), checking all disturbed wiring and then scratching my head. Turns out for some unknown reason the earth post to the battery didn't tighten. I used a 10mm socket and it got tight but didn't tighten the earth post. I had to remove the earth post and cable and sort it out on the bench. A new M6 S/S nut was need on the post but I still don't know why!

Re-assembled it and put it back on the car. Connected the battery back up, turned the key and she fired up instantly! :D

I warmed her up for about 30 minutes and checked that everything else on the car works; heater, heater fan, lights, etc. Even the A/C runs but does need some refrigerant.

The engine runs like a dream....I have put a K&N air filter on as it is impossible to get access to the OEM one when the body is on. With the rasp of the intake allied to the exhaust rumble of the M54 3 Litre it is music to my ears.

The day went from terrible to great. Cars are so fickle when it comes to earthing!IMG_9421.JPGIMG_9424.JPG


Pond

Zorg Guru (II)
British Zeds
Joined
Dec 26, 2016
Points
124
Location
Spaldingski, Lincs
Model of Z
Z3 project and E89 Z4
As I cannot trial fit my body due to the great British Summer at the moment (it's all ready to go but I need to do it outside), I have been doing some other bits.
I have installed the interior door openers and connected them up to the Z3 rods. I have adapted some 2 way momentary switches to fit my period window winders, so the electric windows can still work. The wiring will be taken from the old mirror feeds and spliced inside the cabin.
I have also adapted my old MGB seats to fit on the electric Z3 seat bases. It was quite tricky as they are a tight fit and have to move straight!
I put new diaphragms on the seats (what a PITA that was) and new backing boards. I have new foams which will not be glued until upholstery time.
Also diverted the windscreen washer hoses and cut them to be roughly in the correct new place.

Last edited:

Jezza

Dedicated Member
Joined
Sep 28, 2016
Points
35
Glad you are getting things done bit by bit. Keep it up!

Last edited:

Pond

Zorg Guru (II)
British Zeds
Joined
Dec 26, 2016
Points
124
Location
Spaldingski, Lincs
Model of Z
Z3 project and E89 Z4
Glad you are getting things done but by bit. Keep it up!
I really want to get the body sorted and glued, but every day it is forecast for showers. I can't put the body on in the garage, as the body panels are too long (and it will be tricky getting the body through the door).


Duncodin

Zorg Guru (III)
Supporter
Joined
Sep 8, 2021
Points
136
Location
Pontrhydyrun
Model of Z
Z3 M44
. .
I can't put the body on in the garage, as the body panels are too long (and it will be tricky getting the body through the door).
??

Your garage looks huge. I wish I had that much space.

I'm really glad to see your progress though. Keep it going and keep the updates coming. :)


Pond

Zorg Guru (II)
British Zeds
Joined
Dec 26, 2016
Points
124
Location
Spaldingski, Lincs
Model of Z
Z3 project and E89 Z4
Your garage looks huge. I wish I had that much space.

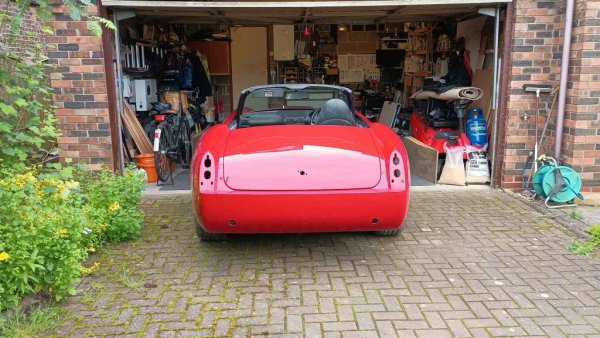

Wide angle lens mate. I bought it second hand off an estate agent! ;)
