What is this socket for?

jonco

jonco

Zorg Guru (IV)
Supporter
British Zeds
The M44 Massive
Joined
Dec 6, 2011
Points
159
Location
Chester
Model of Z
'98 1.9 Auto
Ianmc said:
@jonco, does your automatic M44 have ASC? If so, Brian4 has likely cracked it. That said, there are wires attached to it!
Click to expand...
Yes I have ASC - build date 12/97 - so Brian may have it - need to add that label Brian;).
Was just looking at other pics and diagrams - I think these are the ASC relays. positioned other side of engine bay. I'll trace the cable tomorrow if I have time.

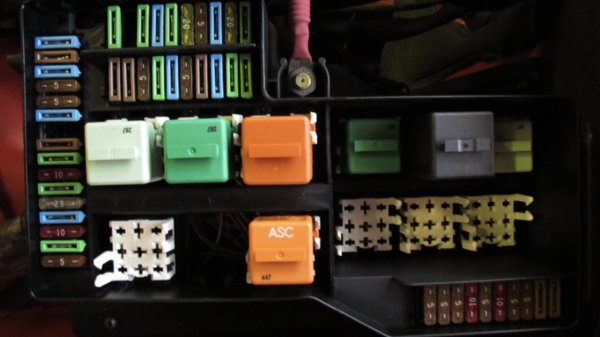

EDIT - maybe not have found this in main fuse box in my pics

Last edited:
Ianmc

Ianmc

Zorg Guru (IV)
British Zeds
The M44 Massive
Joined
Oct 12, 2014
Points
165
Location
New Forest
Model of Z
Z3 (M44)
So if its ASC related, wonder now what my cables do (or don't do).:thumbsup:

jonco

jonco

Zorg Guru (IV)
Supporter
British Zeds
The M44 Massive
Joined
Dec 6, 2011
Points
159
Location
Chester
Model of Z
'98 1.9 Auto
Ianmc said:
So if its ASC related, wonder now what my cables do (or don't do).:thumbsup:
Click to expand...
May just be the standard loom/harness installation - there are a few spare plugs around these cars for optional extras.

Ianmc

Ianmc

Zorg Guru (IV)
British Zeds
The M44 Massive
Joined
Oct 12, 2014
Points
165
Location
New Forest
Model of Z
Z3 (M44)
jonco said:
May just be the standard loom/harness installation - there are a few spare plugs around these cars for optional extras.
Click to expand...
Could well be that. Will keep digging! Thanks a lot.:thumbsup:

Jock67

Jock67

Dedicated Member
British Zeds
Joined
Jul 29, 2017
Points
29
Location
Ayrshire
Model of Z
1.9i M44
Mine doesn't have aircon...I just put the roof down

Jock67

Jock67

Dedicated Member
British Zeds
Joined
Jul 29, 2017
Points
29
Location
Ayrshire
Model of Z
1.9i M44
No hard top for me....have the roof down and enjoy some winter sunshine

Stevo7682

Stevo7682

Zorg Expert (I)
Supporter
The M44 Massive
Scottish Zeds
Joined
Apr 1, 2016
Points
218
Location
Maybole , South Ayrshire
Model of Z
Z3 Individual Dakar / Orinoco Individual
Just came across this thread curiosity got the better of me and it's not quite dark here yet so went out to look at both zed
Both have asc
Pre facelift m44 auto both plugs at fuse box have cables
Facelift m43 manual doesn't have the 2 plugs at the fuse box the 20 pin obd2 sits just down from the fuse box .

Mazza

Mazza

Zorg Guru (V)
Supporter
British Zeds
The M44 Massive
Joined
Nov 1, 2017
Points
175
Location
Bognor Regis
Model of Z
Z3 1.9 M44 Roadster Z3 2.8 Project
Just took a pic of mine. Build date Aug 1998, 1.9lt M44 manual
I have ASC but don’t have the second round pin connector.


And the loom tray cover is not missing , just off at the moment as doing the rocker cover gasket :)


Found this picture indicating the ODB connector arrowhead, but which also shows two connectors (zoom in ) on the right hand side. But it does have a top on it.
Can’t find any info of what it’s for though.

Ianmc

Ianmc

Zorg Guru (IV)
British Zeds
The M44 Massive
Joined
Oct 12, 2014
Points
165
Location
New Forest
Model of Z
Z3 (M44)
Brian4 said:
Found the connectors they are X20 and X69 on the ETM and looks as if X20 which is the one nearest the rad is to do with the aircon so I assume yours has no aircon @Ianmc
Click to expand...
Mine does have aircon, that works really well. Therefore it seems that the mystery plug is not aircon related, nor does it seem to be ASC related. Anybody know if Sherlock works on cars!:whistle::thumbsup::)

Ianmc

Ianmc

Zorg Guru (IV)
British Zeds
The M44 Massive
Joined
Oct 12, 2014
Points
165
Location
New Forest
Model of Z
Z3 (M44)
Having looked at @Brian4 wiring diagram (thank you), wonder if it could be power hood related. If so, @jonco will have a power hood, as will @Brian4 (both have the plug cap) and @Jock67 will not have powered hood (no cap) like mine.
Does this logic stand up folks?:thumbsup:
Ian
Note to self: "get out more often"!

jonco

jonco

Zorg Guru (IV)
Supporter
British Zeds
The M44 Massive
Joined
Dec 6, 2011
Points
159
Location
Chester
Model of Z
'98 1.9 Auto
Ianmc said:
..............Note to self: "get out more often"!
Click to expand...
I did last night but will have a look at wiring later. Just to confuse things I don't have Air con or powered hood but have said plug and cable.:confused:

Ianmc

Ianmc

Zorg Guru (IV)
British Zeds
The M44 Massive
Joined
Oct 12, 2014
Points
165
Location
New Forest
Model of Z
Z3 (M44)
jonco said:
I did last night but will have a look at wiring later. Just to confuse things I don't have Air con or powered hood but have said plug and cable.:confused:
Click to expand...
Bugger, another theory down the pan!:whistle:

BMBabe

BMBabe

Zorg Expert (I)
Staff member
Supporter
British Zeds
Community Admin
Joined
Sep 4, 2014
Points
206
Location
Aylesbury
Model of Z
Z3
Has anyone asked the Zedshed yet? @Lee

Ianmc

Ianmc

Zorg Guru (IV)
British Zeds
The M44 Massive
Joined
Oct 12, 2014
Points
165
Location
New Forest
Model of Z
Z3 (M44)
BMBabe said:
Has anyone asked the Zedshed yet? @Lee
Click to expand...
All contributions would be greatly appreciated, including the Baker Street telephone number!!:thumbsup:
Think i'm developing OCD or PTSD or something new!!!!!!:whistle:

Brian4

Brian4

Zorg Guru (IV)
British Zeds
East Anglian Crew
Joined
Dec 23, 2011
Points
173
Location
Near Grantham
Model of Z
Z3 3.0i Auto
Been delving into the wiring diagrams again and looks as if X20 the one at the rear of the engine bay is the engine loom connector to the car loom and X69 towards the front is for the auto transmission.

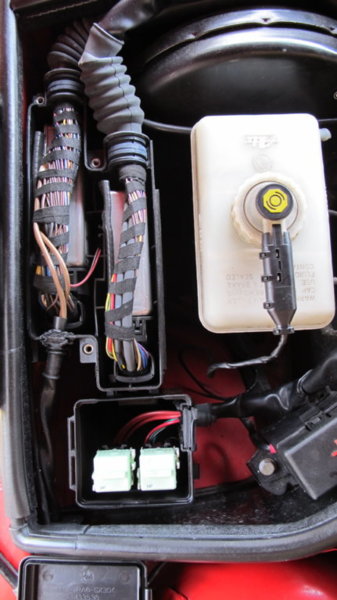

@jonco the cable from the connector should go to the plug adjacent the brake fluid reservoir in the picture top of this page (post#21) If taht plug is missing from yours @Ianmc I think we have so.
Jonco got it right in his first post well done.
