Can you take a pic of your alarm module, it would be helpful if any part numbers on there as well to try and pencil it down for you.
SOS Z3 ALARM CENTRAL LOCKING ISSUE
- Thread starter jennals
- Start date
jennals
Regular Member
- Joined
- May 22, 2026
- Points
- 13

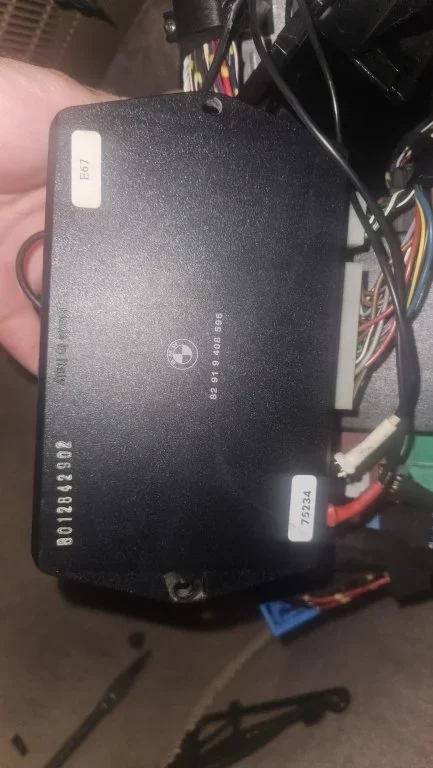

Hi, sure. Part number is: 82919408596. There's one well priced at £45 on ebay currently that matches. If youre able to help me work out which key should be paring with this module it'd be much appreciated.
I can see that there is 5 keys synced to the module from my diagnostic so a chance thks key is not an original.
Attachments
From memory that unit looks similar to mine which I have the separate brick remote and my key has no remote functions only a light.
The part number you gave only shows for series 3,5,7 in Realoem. For mine Realoem gave part numbe 82919404777. Hopefully the remote you have ordered will work with your suspicion.
Just recalled this thread, I’ll think you’ll find it interesting https://www.bimmerforums.co.uk/threads/e36-alarm-identification-guide-3t-2t-3g-ews.39173/
The part number you gave only shows for series 3,5,7 in Realoem. For mine Realoem gave part numbe 82919404777. Hopefully the remote you have ordered will work with your suspicion.
Just recalled this thread, I’ll think you’ll find it interesting https://www.bimmerforums.co.uk/threads/e36-alarm-identification-guide-3t-2t-3g-ews.39173/
Last edited:
Always the brick- style.
Might be worth contacting one of the `breakers' on the forum to see if they have any spare. Not sure who is active these days but try Andy - @spurs fan in a coupe
jennals
Regular Member
- Joined
- May 22, 2026
- Points
- 13
Hi all,
Thanks again for all the advice and suggestions so far. I've made some more progress.
I've now bought a brick-style fob and successfully synced it with my existing alarm/central locking module 82919408596. The remote will lock and unlock the passenger door and boot, but it won't operate the driver's door.
Just to clarify, when using the physical key, all the locks work together correctly and lock/unlock in sync. It's only when using the remote that the driver's door doesn't respond.
Has anyone come across this before or got any ideas what might be causing it? ChatGPT suggested it could be the driver's door actuator, but I'm not sure if that fully explains why everything works correctly with the key.
Slowly getting there! The main thing is that I can finally drive the car around again.
Thanks in advance.
Thanks again for all the advice and suggestions so far. I've made some more progress.
I've now bought a brick-style fob and successfully synced it with my existing alarm/central locking module 82919408596. The remote will lock and unlock the passenger door and boot, but it won't operate the driver's door.
Just to clarify, when using the physical key, all the locks work together correctly and lock/unlock in sync. It's only when using the remote that the driver's door doesn't respond.
Has anyone come across this before or got any ideas what might be causing it? ChatGPT suggested it could be the driver's door actuator, but I'm not sure if that fully explains why everything works correctly with the key.
Slowly getting there! The main thing is that I can finally drive the car around again.
Thanks in advance.
Sounds like an actuator problem it was the first problem I had with my car, just gone and checked on my old post though and I could not open it with the key though. Just a thought though as I did experience similar symptoms at a later date and was cured after manually operating the door catches after a healthy dose of WD. I’m positive that will be the problem if both door knobs are popping up.
Last edited:
jennals
Regular Member
- Joined
- May 22, 2026
- Points
- 13
Thanks. That being said ive just dosed it up on WD to settle over night, although I cant hear any electronics trying to even work inside the door when i use my new/ v old brick remote.
Also this must be linked to my original diagnostics/ fault which said Open Circuit Central locking. A quick google/ AI said a door actuator shows up as an open circuit fault. So fingers crossed this is my problem!
Its mad that who ever had this car before me had the wrong 3 button key for it, for all those years!
- Joined
- May 9, 2022
- Points
- 63
- Model of Z
- Z3 Roadster
When you say "everything works correctly with the key" are you using the key in the drivers side door and then everything else reacts? If that's the case, you're manually actuating the lock, so an actuator problem wouldn't affect the result. Using the fob, you're relying on the actuator to move the lock on the driver's door.
I've never tried my key on the passenger side. Does that activate all the locks like the driver's door does? If so, you could try that too. If it's still just the driver's door that doesn't unlock, that sure sounds like an actuator.
jennals
Regular Member
- Joined
- May 22, 2026
- Points
- 13
Thanks mate, that’s really helpful.
So the key in the driver’s door does operate central locking for all doors, but if I lock or unlock using the passenger door or boot with the key, the driver’s door doesn’t respond in sync.
Based on all that, I’m hoping it’s just the actuator that needs replacing. Slowly working through the issues one by one and getting there!
jennals
Regular Member
- Joined
- May 22, 2026
- Points
- 13
BMW Z3 2.8 (1998) Alarm, Central Locking & Remote Key Issues – SOLVED
I wanted to post a final update in case it helps anyone else in the future, and to thank everyone on this forum who helped me work through the issues one by one.
Original Problem:
The main problem started after the battery went flat.
After charging the battery and reconnecting it, the car developed a number of faults:
- Alarm and hazards would go off when opening the doors or boot.
- Central locking only worked by turning the key in the driver's door. (This has been like this for my ownership and the previous owner snhip spanning back 6 years).
- Remote locking did not work.
- The key would not sync to the alarm module.
- The boot lock wasn't always operating in sync with the rest of the central locking system.
At the beginning it looked like one fault, but it turned out to be several separate issues all happening at the same time.
Using a diagnostic tool, the ZKE module was reporting:
- Driver's door central locking drive – Open Circuit
- Central locking – Open Circuit
- Central locking rear lid – Open Circuit
- Terminal R Missing
At the time I wasn't sure whether these were genuine faults or just the result of the alarm system having a meltdown after the flat battery. As it turned out, some of them were pointing me in the right direction.
Fault 1 – Broken Boot Loom Wire
While investigating I found a broken thick white 12V wire in the boot lid loom where it bends near the hinge.
This had also blown Fuse 33.
Fix:
- Repaired the broken wire.
- Replaced Fuse 33 (£1).
Result:
- Boot lock started operating correctly again.
- Central locking behaviour improved immediately.
- The rear lid open circuit fault started to make much more sense.
Fault 2 – Alarm Module Connections
I removed the alarm module and unplugged/replugged all the connectors.
Result:
- The hazards no longer flashed every time a door or the boot was opened.
- Alarm behaviour became much more predictable.
- The system stopped acting as though every opening was a theft attempt.
This was a major turning point in diagnosing the remaining faults.
Fault 3 – Wrong Remote Key
I discovered that my car was fitted with the older BMW alarm system that uses the separate "brick" style remote fob.
For years I had been trying to sync a later BMW 3-button key which is used on later Z3s and other BMW models.
The key was never going to sync because it was the wrong system.
One of the clues was that I could put the alarm module into learn mode, but neither my original key nor a replacement 3-button key would pair with it.
Fix:
- Purchased the correct BMW brick-style remote fob (£50).
- Put the alarm module into learn mode.
Successfully paired the fob.
Result:
- Remote locking and unlocking started working correctly.
- Alarm system could finally be controlled remotely as intended.
Fault 4 – Driver's Door Actuator
After getting the remote working I discovered that every lock responded except the driver's door.
The driver's door would still lock and unlock manually with the key, but would not respond to the remote.
This is where the original fault code became important:
- Driver's door central locking drive – Open Circuit
- The diagnostic tool had actually been telling the truth all along.
Fix:
Replaced the driver's door lock actuator (£22).
Result:
- Driver's door now locks and unlocks with the remote.
- Central locking fully operational.
- Original driver's door open circuit fault resolved.
Final Outcome
Everything is now working correctly:
- Alarm operates normally.
- Hazards no longer trigger unexpectedly.
- Central locking works from the remote.
- Driver's door, passenger door and boot all lock and unlock together.
- Remote fob syncs and works correctly.
No more chasing electrical gremlins!
Total Cost
- Correct BMW brick remote fob: £50
- Driver's door actuator: £22
- Fuse 33: £1
Total: £73
Lessons Learned
What made this difficult was that there wasn't a single fault. I had:
1. A broken boot loom wire.
2. A blown fuse.
3. Poor alarm module connections.
4. The wrong remote key for the alarm system.
5. A failed driver's door actuator.
Any one of those faults on its own would have been fairly straightforward, but together they created a very confusing set of symptoms.
It's also worth mentioning that because everything started immediately after the battery went flat, I initially suspected the ZKE module, alarm module, EWS or some major electrical failure. Thankfully none of those turned out to be the problem.
In the end the fault codes were actually very useful, especially the driver's door central locking drive open circuit code, which turned out to be completely accurate.
Thanks again to everyone on this forum who took the time to reply, suggest tests and point me in the right direction. The advice here helped me solve each issue one by one rather than throwing expensive parts at the car.
Hopefully this helps the next Z3 owner searching for alarm and central locking problems!
