Fitting a few extra gauges.. Help needed...

Discussion in 'Z3 Roadster & Coupé' started by pgunter, Nov 30, 2014.

  1. pgunter

    pgunter My Two Girls
    Supporter British Zeds #ZedShed

    Joined:
    Aug 15, 2014
    Messages:
    3,665
    Likes Received:
    3,123
    Trophy Points:
    174
    Location:
    Winchester
    Model of Z:
    2.2i sport & 3.0i sport
    Hello,

    This will make @GazHyde 's hair stand up on the back of his neck.. lol.. sorry Gary.

    I am looking at adding some extra gauges to my Z3 2.2i. Does anybody have any experience of fitting sensors to the parts of the engine that might help.

    Gauges I am looking at installing in the 'M' Console are, 1. Oil Temperature 2. Voltage and the last 3. will be a clock.

    Is the best way for the Oil Temp going to be a sump plug sensor ? If so what is a good one for the VDO gauges ?

    The electrical Voltage gauge. Any thoughts on where the best connections would be made ?

    I know its not everybody's thing, but being old school, I like to see a problem before I have the lights flashing on the dash so I can at least try and stop it before it goes fatal.

    All help much appreciated.

    • Like Like x 2
  2. bonzo

    bonzo Guest

    I would have thought an oil pressure gauge would be more informative than a temp gauge. You could start to lose pressure when the oil is cool, with no indication.

    • Agree Agree x 1
  3. David Cullen

    David Cullen Zorg Legend
    Supporter The M44 Massive

    Joined:
    Jul 8, 2014
    Messages:
    760
    Likes Received:
    366
    Trophy Points:
    76
    Location:
    Prosperous, County Kildare
    Voltage gauge - tap off the battery pos and ground anywhere, use volt meter set to audible to check continuity with ground
    I presume the engine has an oil temp sensor so just tap in to the signal wire from that and again ground anywhere.

  4. David Cullen

    David Cullen Zorg Legend
    Supporter The M44 Massive

    Joined:
    Jul 8, 2014
    Messages:
    760
    Likes Received:
    366
    Trophy Points:
    76
    Location:
    Prosperous, County Kildare
    Sorry, with volt gauge use the switch live from the radio so it will turn off ;-)

  5. David Cullen

    David Cullen Zorg Legend
    Supporter The M44 Massive

    Joined:
    Jul 8, 2014
    Messages:
    760
    Likes Received:
    366
    Trophy Points:
    76
    Location:
    Prosperous, County Kildare
    If the engine dosent have a temp gauge you will have to buy a sandwich plate which sits between the block and oil filter. I dont know if these are readily available?

  6. GazHyde

    GazHyde The Gaz Monkey
    Staff Member Administrator Global Moderator British Zeds

    Joined:
    Dec 2, 2011
    Messages:
    15,207
    Likes Received:
    9,346
    Trophy Points:
    226
    Location:
    Newbury, Berkshire
    Model of Z:
    BMW Z4 3.0Si Sport
    @David - am I going slightly mad, or did I read somewhere you are retrofitting the ///M console as part of your interior refurb?

  7. David

    David Zorg Guru (III)
    Supporter British Zeds

    Joined:
    Sep 16, 2013
    Messages:
    827
    Likes Received:
    873
    Trophy Points:
    127
    Location:
    Shoreham-by-Sea, West Sussex
    Model of Z:
    Z4 3.0si Sport
    @GazHyde , you're not going mad, I'm at this stage right now, and I'll be pestering @Southernboy with this question when I get to it, should I need to.

    This is a nice wiring diagram that Barry has already sent me, regarding the dials:

    (Copyright SouthernboySolutions Ltd.)

    • Like Like x 1
    • Thank You! Thank You! x 1
  8. Lee

    Lee Zorg Guru (V)
    British Zeds #ZedShed M Power

    Joined:
    Mar 26, 2014
    Messages:
    2,982
    Likes Received:
    3,785
    Trophy Points:
    187
    Location:
    Basingstoke
    Model of Z:
    Z4 Coupe
    So going by southernboy's diagram we have 99% of whats needed. My only remaining question is the oil temp sender.

    Does a non M z3 have one or is it easier to run one off the sump plug.

    Thoughts?

  9. pgunter

    pgunter My Two Girls
    Supporter British Zeds #ZedShed

    Joined:
    Aug 15, 2014
    Messages:
    3,665
    Likes Received:
    3,123
    Trophy Points:
    174
    Location:
    Winchester
    Model of Z:
    2.2i sport & 3.0i sport
    Good points raised.. Anybody have an idea what the thread is on the sump plug bolt ?

    I will add a few photos when I get the project underway too.

  10. Lee

    Lee Zorg Guru (V)
    British Zeds #ZedShed M Power

    Joined:
    Mar 26, 2014
    Messages:
    2,982
    Likes Received:
    3,785
    Trophy Points:
    187
    Location:
    Basingstoke
    Model of Z:
    Z4 Coupe
    Its an M12 1.5 pitch mate. Somthing i have the tools to create if needed.

    • Like Like x 1
  11. pgunter

    pgunter My Two Girls
    Supporter British Zeds #ZedShed

    Joined:
    Aug 15, 2014
    Messages:
    3,665
    Likes Received:
    3,123
    Trophy Points:
    174
    Location:
    Winchester
    Model of Z:
    2.2i sport & 3.0i sport
    Thanks @Lee The sensors are a complete block so I hope I can actually get the required threaded sensor.

  12. pgunter

    pgunter My Two Girls
    Supporter British Zeds #ZedShed

    Joined:
    Aug 15, 2014
    Messages:
    3,665
    Likes Received:
    3,123
    Trophy Points:
    174
    Location:
    Winchester
    Model of Z:
    2.2i sport & 3.0i sport
    I have been researching the ideas of the gauges for some time and the idea of where to attach the oil sensor has been ongoing for a while. On the Realoem web page for the oil system it shows a slightly different oil filter housing. When I look at my 2.2i I appear to have a bolt being used for blanking off what could be an idea place for a sensor be it pressure or temperature.

    The pages I refer to are..

    Item 12 on the linked page.

    http://www.realoem.com/bmw/showparts.do?model=CN12&mospid=48081&btnr=11_2201&hg=11&fg=30

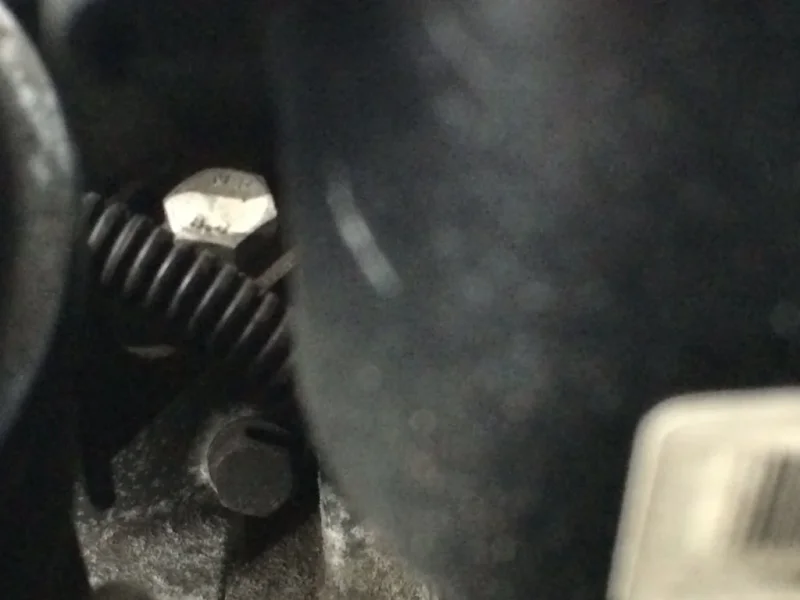

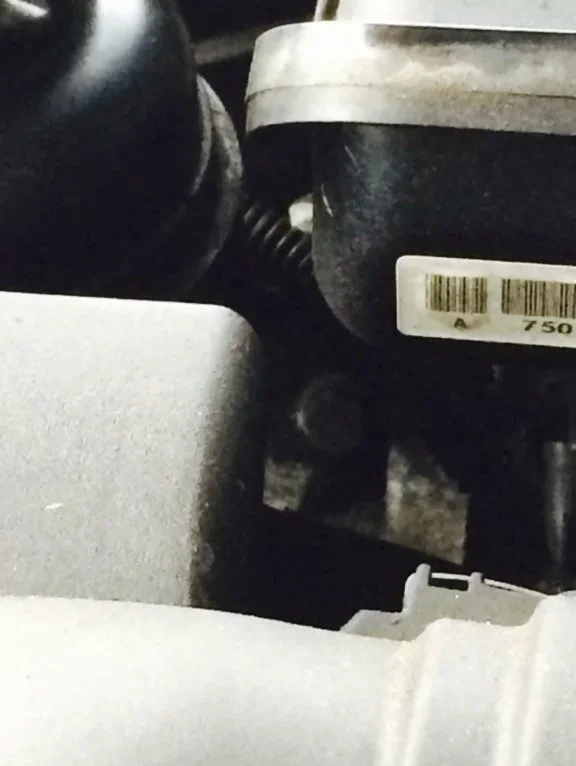

    You will see the bolt I am referring to to the lower left of the label on image 2914 and clearly shown below the housing bolt on 2913.

    Any thoughts ?


    Attached Files:

  13. g8jka

    g8jka Zorg Guru (III)
    British Zeds

    Joined:
    Dec 5, 2011
    Messages:
    2,106
    Likes Received:
    1,297
    Trophy Points:
    148
    Location:
    Telford, Shropshire
    Model of Z:
    Z3 - 2000 2.8 Roadster
    I have mine hooked up to the sump which will work but I am never sure it gives a correct reading. Most of the time it only rises to around the first indicator after 50, although on a longer run it goes a bit more but I have never seen it rise further. I don't know if it reads correctly or not and it takes a long time to warm up.

    [​IMG]

  14. Southernboy

    Southernboy Zorg Guru (II)
    3rd Party Trader

    Joined:
    Apr 27, 2012
    Messages:
    378
    Likes Received:
    386
    Trophy Points:
    100

    There is a neat option...Same socket and head size as the OEM oil drain bolt in the sump....made by VDO and works perfectly...
    http://www.ebay.co.uk/itm/VDO-323-092-Temperature-Sender-/111405166068?hash=item19f043edf4
    Easy to fit and wire up.....No extra bits required...and it's a 12 x 1.5 thread :)

    • Like Like x 1
