Z3M exhaust

[Medskipper]

Does anyone have a schematic drawing of the exhaust system? Serial numbers will be a big help!
I have the Z3M 3.2. S50 engine. Year 2000.

I can’t seem to find anything on the Net!

many thanks for any help



[Pingu]

Is this what you are after...

RealOEM.com - Online BMW Parts Catalog

BMW parts Z3 E36 Z3 M Diagram Selection

www.realoem.com



[Medskipper]

Tried that! Doesn’t have a drawing!
it does know my car but no sign of drawings or part numbers



[Pingu]

Are you wanting to make one?



[gookah]

shows drawings and part numbers when I click the link?

Sponsored links

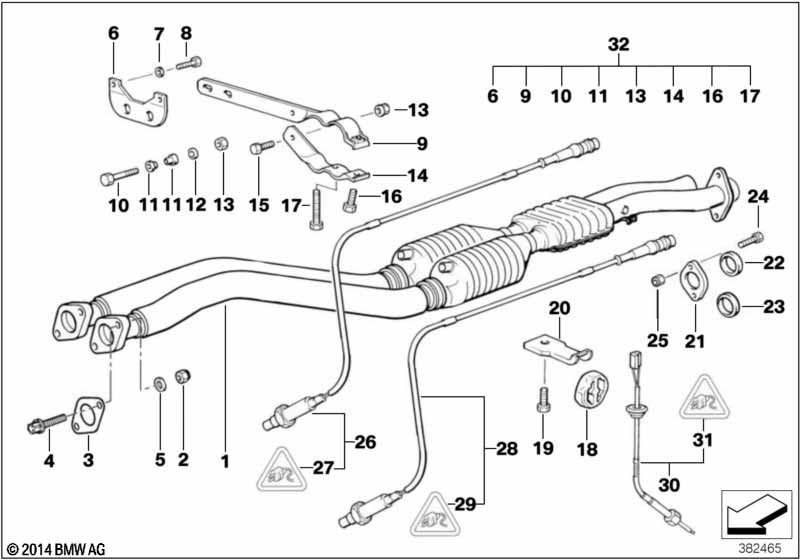

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
	For vehicles with Catalytic converter	=Yes
01	RP-exhaust pipe catalytic converter		1			18301404984	$2511.00
02	Hex nut	M10	4			18301317898	$4.70
03	Gasket Asbestos Free		2			11621317264	$18.37
	Required for repair
--	Hex nut	M10	4			18301317898	$4.70
--	Torx bolt	M10X45	4			11621318568	$4.30
04	Torx bolt	M10X45	4			11621318568	$4.30
05	Washer	D=10MM	4			07119904201	$1.02
06	Bracket		1			18311401522	$8.14
08	Hex bolt with washer	M8X20-U1-8.8	2			07119904992	$0.55
09	Exhaust support		1			18301404760	$10.00
10	Fillister-head screw	M8X35-10.9-ZNS3	2			07119906650	$0.87
11	Joint sleeve	D=8MM	4			18207546579	$2.86
12	Washer	8,4X16X1,6-ZNNV	2			07119907030
13	Self-locking hex nut	M8	2			07129964655	$0.25
13	Self-locking hex nut	M8-8-ZNS3	2			07129904002	$0.18
14	Clamp lower	D=63,5MM	1			18201404098	$10.62
14	Clamp upper	D=63,5MM	1			18201404099	$10.62
15	Hex bolt	M8X16	1			07119913612	$0.62
16	Hex bolt with washer	M8X20-U1-8.8	1			07119904992	$0.55
17	Hex bolt with washer	M8X45-8.8-ZNS3	1			07119903931	$0.71
21	Flange		2			18111719417	$12.64
22	Gasket ring		1			18111723379	$8.37
23	Gasket ring		1			18111723379	$8.37
24	Hex bolt	M8X55-8.8	4			07119902957	$5.27
25	Hex nut	M8 SW12	4			11621744323	$0.85
26	Oxygen sensor	BOSCH/L=1075MM	1			11781406621	$215.65
28	Oxygen sensor	BOSCH/L=935MM	1			11781406622	$215.65

Sponsored links

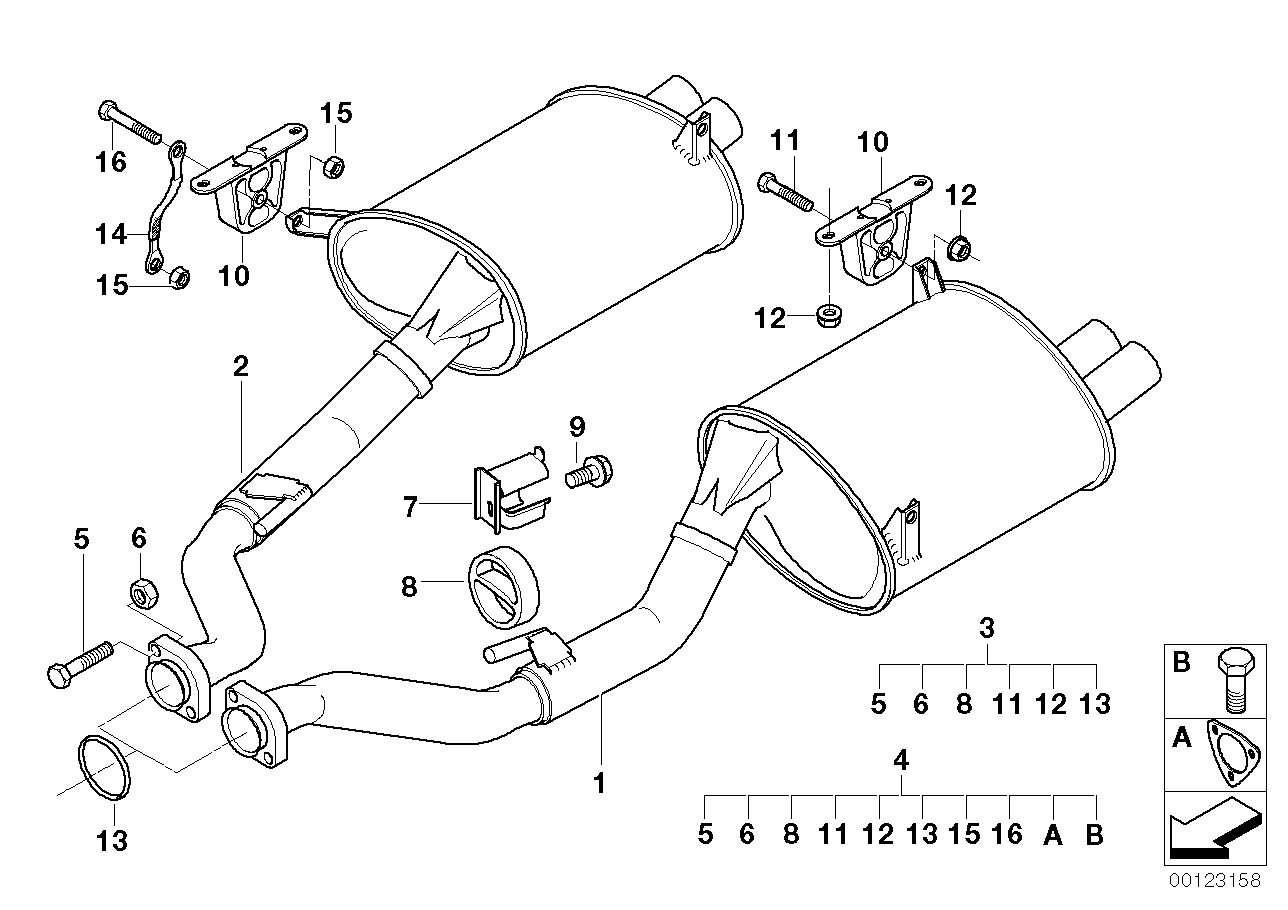

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
01	Rear muffler left		1			18101404317	$787.88
02	Rear muffler right		1			18101404318	$787.88
03	Set of add-on parts, silencer		1			18210151441	$33.52		ENDED
05	Hex bolt	M8X55-8.8	4			07119902957	$5.27
06	Hex nut	M8 SW12	4			11621744323	$0.85
07	Holder		2			18212242792	$8.88
08	Rubber Ring		2			18211105635	$4.83
09	Hex bolt with washer	M8X20-U1-8.8	2			07119904992	$0.55
10	Rubber Mounting		4			18211704198	$21.41
11	Hex bolt	M8X45	4		05/2002	07119900233	$0.82		ENDED
11	Hex bolt	M8X45-8.8-ZNS3	4			07119902955	$0.62
12	Hex nut	M8-ZNS3	12			07119904024	$0.20
13	Gasket ring		2			18111723379	$8.37

Notes



[Medskipper]

That’s great, many thanks.

As the prices are all in dollars, is this the drawing for the S52 Engine?
possibly the same as the S50?
it does look very much like mine as I was under the car this afternoon!

Barry



[gookah]

no idea with prices, they were initially set when the cars were new, I find they are nothing even close to that nowadays. the drawings are from the link Pingu posted.



[Pingu]

Use the "Search Parts" links on here for accurate prices. You can buy from here, as well.
