Vanos Rebuild or replace

[ExMX5owner]

Goodmorning all, well its morning here in Australia..... Its time for me to rebuild or replace the dual vanos on my z, shes a bit noisy on warm oil and is sluggish to respond to a bit of welly. There is obviously shed loads of info on this topic, but I ask here of my new friends anyway... I had the DISA out yesterday and its fine.. Any advice or referrals would be appreciated.

Cheers....



[Mike Fishwick]

Replacing the seals seems to be quite a easy job - look at the Biesan Systems website, which has detailed info on how to do it properly. The Beisan company of the USA are regarded as the best type of seals, being made of decent high temperatire material which lasts for ever.

Also look at the Probsten-tech.de site, who specialise in VANOS repairs. They are based N of Stuttgart, and have a lot of useful info regarding their testsing of Biesan seals, and other gems such as oil tryes. They advise against using 10-60, as this promotes seal wear, reccommend use of 5 or10-40 oil. they also do their rebiult and sometimes machined units by post, or just sell kits of every part you need to DIY.



[the Nefyn cat]

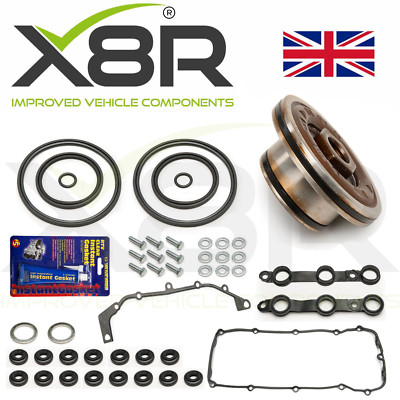

I've used kits from these people a couple of times now, they work. You might not think you need the cam-cover gaskets but if they haven't already been changed they'll be toast anyway.

Pardon our interruption...



[ExMX5owner]

Super helpful, thankyou guys. I was not going to take it on myself, but now I will. Looks like a guy with only one hand can handle it...



[bear2020]

Did mine including all the bearings in the vanos very simple to do.



[ExMX5owner]

Did mine including all the bearings in the vanos very simple to do.

Yes, that,s a good point, I had not considered the bearings. I guess may as well, while I,m in there...



[the Nefyn cat]

Plenty of videos on youtube if you're not sure, but they are fairly simple to do. Plenty of opportunities to let some blood out of your thumb, too, I found.And there's nothing like the smugness of doing it yourself.
