    :)Hi guys how do I tell if the roof micro switch is no good

    Thanks

  2. Titan

    Titan Moderator
    British Zeds

    Joined:
    Dec 4, 2011
    Messages:
    1,409
    Likes Received:
    107
    Trophy Points:
    86
    Location:
    North North Yorkshire
    Model of Z:
    sDrive35i
    You can short it out at the connector behind passenger's left shoulder.
    IIRC 1or 2 screws hold a trim cover in place near the ram.
    Take that off and there is a connector block for the microswitch.
    Short the 2 down coming wires out and you will know of it is the hood micro that's causing the problem.
    The other possibility is the brake light switch above the pedal.

  3. GazHyde

    GazHyde The Gaz Monkey
    Staff Member Administrator Global Moderator British Zeds

    Joined:
    Dec 2, 2011
    Messages:
    15,110
    Likes Received:
    9,173
    Trophy Points:
    226
    Location:
    Newbury, Berkshire
    Model of Z:
    BMW Z4 3.0Si Sport
  4. Hammers

    Hammers Dedicated Member
    The M44 Massive

    Joined:
    Dec 31, 2011
    Messages:
    63
    Likes Received:
    9
    Trophy Points:
    27
    Thanks guys :inpain:

  5. Titan

    Titan Moderator
    British Zeds

    Joined:
    Dec 4, 2011
    Messages:
    1,409
    Likes Received:
    107
    Trophy Points:
    86
    Location:
    North North Yorkshire
    Model of Z:
    sDrive35i

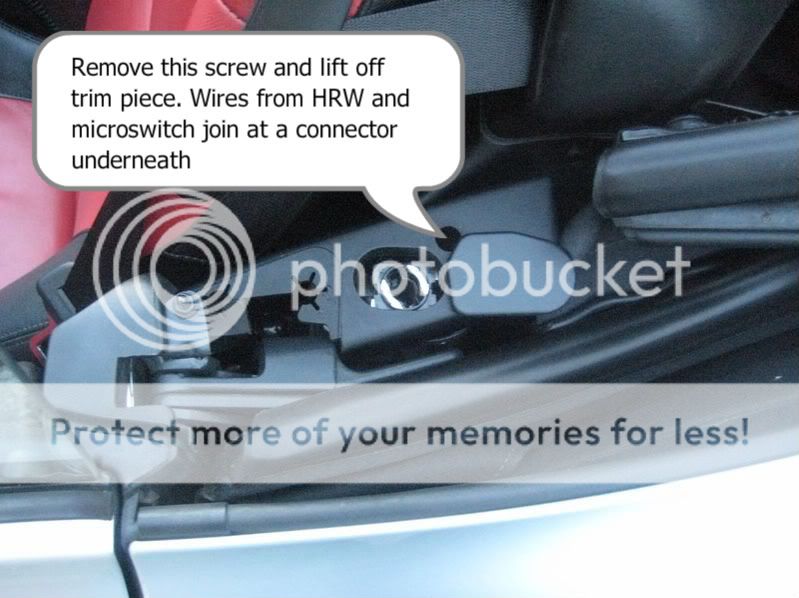

    Here's a couple of pics that may help

    [​IMG]

    [​IMG]

  6. Hammers

    Hammers Dedicated Member
    The M44 Massive

    Joined:
    Dec 31, 2011
    Messages:
    63
    Likes Received:
    9
    Trophy Points:
    27
    Hi Titan I'm new to this how do I short it out sorry ?

  7. Titan

    Titan Moderator
    British Zeds

    Joined:
    Dec 4, 2011
    Messages:
    1,409
    Likes Received:
    107
    Trophy Points:
    86
    Location:
    North North Yorkshire
    Model of Z:
    sDrive35i
    No problem - we were all new once!

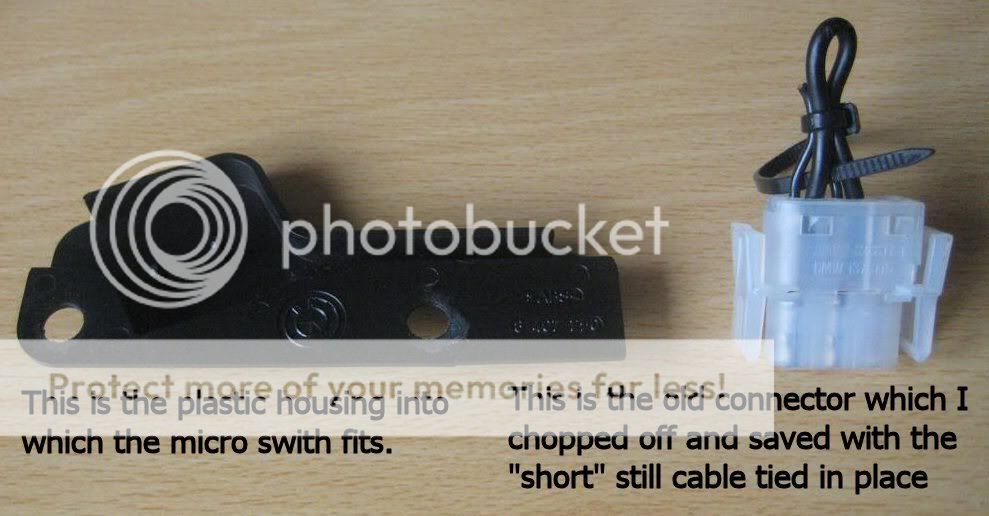

    In the picture above the white connector was attached to the roof micro switch. Because the switch was duff, I cut the connector off ( you can just see the the cut end of one of the thinner black wires)
    I then pushed a loop of new wire (the thicker black one) into the back of the terminals and secured it to the original wires with a cable tie.
    If I then reconnect this to the socket below the mounting point, it fools the system into think the micro switch is operative.

    Be careful though, you still need to crank the front lip of the roof before operating the motor otherwise the mechanism doesn't fold and articulate properly.
    If you operate the hydraulic motor without first cranking the front lip, you can sprain and distort the whole roof.

    (All this little trick did was buy me time to get a new micro switch ordered and delivered)
