Lowering Options? Which is the best?

Discussion in 'Performance' started by Toby Mills, Jul 25, 2019.

  1. Toby Mills

    Toby Mills Regular Member

    Joined:
    Apr 28, 2019
    Messages:
    12
    Likes Received:
    6
    Trophy Points:
    13
    Looking to lower my 1998 1.9

    Really need help on what will be best for the car. I want around 40mm ride height. Looking for all round balance between aesthetic and performance.

    Looked at lowering springs, coilovers and lowering kits. On a budget of £300

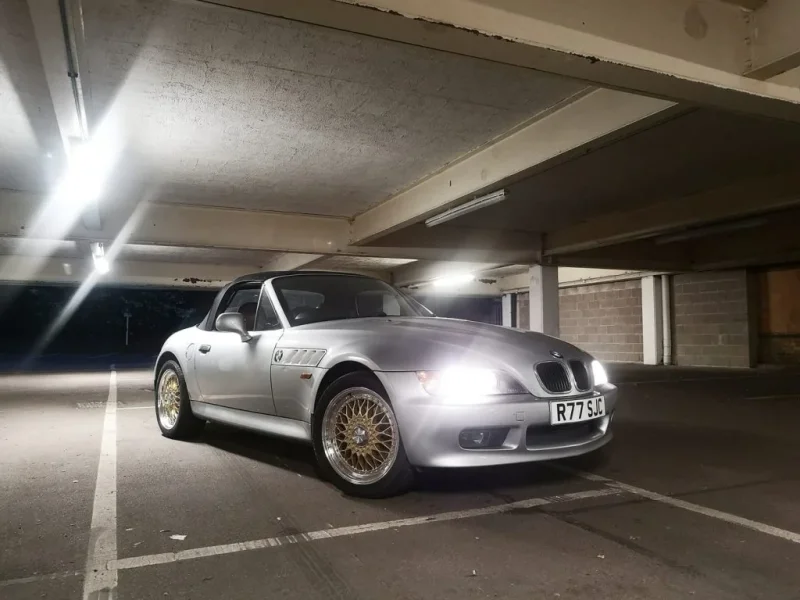

    Please can I have some advice on which is the best? Photo attached to give you guys a better idea of how far car needs to come aesthetically.

    Thanks :)


    Attached Files:

  2. Jjim

    Jjim Zorg Guru (IV)
    British Zeds

    Joined:
    Jul 21, 2017
    Messages:
    3,338
    Likes Received:
    2,109
    Trophy Points:
    150
    Location:
    Mansfield
    Model of Z:
    1.9 Roadster & 2.8 Roadster
    For both my 1.9 and 2.8 I’ve gone for Monroe shocks and Eibach Pro kit springs. Very happy with the drop :thumbsup:

    Also something I found out on the way is that the spring pads are different thickness for different engines. So your able to get thinner pads for a bit of extra drop.

    My 2.8 with drop

    My 1.9 with drop

    • Like Like x 1
  3. mrscalex

    mrscalex Zorg Guru (IV)
    Supporter British Zeds 3rd Party Trader

    Joined:
    Jun 10, 2016
    Messages:
    4,234
    Likes Received:
    2,015
    Trophy Points:
    154
    Location:
    Swindon & Swansea
    Do you really want to drop it 40mm? Even 30mm will occasionally catch speed bumps. But 30mm is the standard drop people tend to go for.

  4. Nodzed

    Nodzed Zorg Expert (I)
    Supporter British Zeds #ZedShed M Power

    Joined:
    Feb 18, 2016
    Messages:
    6,958
    Likes Received:
    4,125
    Trophy Points:
    200
    Location:
    Forest of Dean
    Model of Z:
    Z3MR & Z4 (e89)
    think he said he wants a 40mm ride height not a 40mm drop Rob

  5. mrscalex

    mrscalex Zorg Guru (IV)
    Supporter British Zeds 3rd Party Trader

    Joined:
    Jun 10, 2016
    Messages:
    4,234
    Likes Received:
    2,015
    Trophy Points:
    154
    Location:
    Swindon & Swansea
    No idea what that means then.

    • Agree Agree x 1
  6. Sean d

    Sean d Zorg Guru (V)
    Supporter British Zeds

    Joined:
    Sep 29, 2015
    Messages:
    8,824
    Likes Received:
    8,839
    Trophy Points:
    190
    Location:
    Lincolnshire
    Model of Z:
    Z3 2.8
    Eibach pro is the spring of choice, looks great and doesn't shake your fillings out,
    z out4.jpg

    • Like Like x 2
    • Agree Agree x 1
  7. t-tony

    t-tony Zorg Expert (II)
    Supporter British Zeds #ZedShed

    Joined:
    Dec 31, 2013
    Messages:
    36,961
    Likes Received:
    17,008
    Trophy Points:
    226
    Location:
    Torksey Lock,Lincoln, England
    Model of Z:
    Z4 3.0 Auto
    Eibach Pro here too ............... on original (very low mileage) shocks.

    New springs 041.jpg

    Tony.

  8. Scooblitz

    Scooblitz Zorg Addict
    Supporter British Zeds Scottish Zeds

    Joined:
    Aug 7, 2017
    Messages:
    358
    Likes Received:
    181
    Trophy Points:
    57
    Location:
    Glasgow, Scotland
    Model of Z:
    2.8
    Also looking at some suspension upgrades myself at the moment and there is a decent amount to consider when making a choice. I think it's also good to consider not just suspension but also the wheel and tyre combinations that you want to run. By changing parameters with ride height and wheel sizes, the comfort to perormance equilibirum will shift.

    Heres some of my ebay watch list:

    Fixed position:
    Bilstein b4 kit - https://www.ebay.co.uk/itm/4X-BILST...e=STRK:MEBIDX:IT&_trksid=p2060353.m1438.l2649

    https://www.ebay.co.uk/itm/Eibach-P...adster&hash=item417d412616:g:~8cAAOSw631c3UQD

    Bilsein B12 Kit https://www.ebay.de/itm/EIBACH-BILS...ke:BMW&hash=item56c91493b3:g:jJIAAOSwWAldUvQY

    As a lot of forum members have said, these are a tried and tested, happy formula for a lot of Z owners. Probably the cheapest option if its just springs. The shocks might still have some life left.

    Coilovers:

    https://lowerks.com/vogtland-coilovers-bmw-z3-95.html A set of Vogtland coilovers will give you 30mm drop at a minimum with more adjustabilty in ride height. When buying coilovers, its worth looking for some trademark symbols, TUV, which is the german road standards agency have strict vehicle codes and cars must used tested parts. These are about as cheap a good quality coilover as i can source. Also TUV rated.

    If you are feeling flush https://www.driftworks.com/hsd-coilovers-for-bmw-z3-96-02.html HSD do coilovers with top camber plates too. And for a deeper dredge of your pockets bc racing, kw and up will be the peak in terms of coilover options. These places like driftworks and demon tweeks also seem to offer some interest free credit for 6 months and i would assume other retailers too.

    There are some cheaper coilovers on ebay available but i have never heard of anyone using them so could not report anything on those but there is a phrase, you get what you pay for and i think its worth bearing in mind.
    Wheels&tyres

    If you intend to run 18-19 inch wheels more often, i would say look at a Bilstein B6 strut with a standard spring for 15mm lowering, alot of arch gap can be filled with wheel and tyre combo and with a reasonable amount of comfort retained. 30mm lowering with 18-19 inch wheels is a pretty rough ride on UK roads and not a pleasant driving experience imho.

    The reason i like 17's is that i can have a little bit more tyre sidewall to soften up the ride. There really is a big difference from filling a lost inch of wheel rim and gaining some more rubber when the car is lowered 30mm.

    • Agree Agree x 1
  9. gookah

    gookah Zorg Guru (IV)
    British Zeds

    Joined:
    Dec 7, 2011
    Messages:
    2,850
    Likes Received:
    1,364
    Trophy Points:
    170
    Location:
    Shropshire
    Model of Z:
    2.8 Z3
    I have tried various coilover setups cheap and expensive, and returned back to Eibach pros.
    Coilovers are OK on a billiard table.
    If you want to feel embarrassed whilst apologising to your passengers all the time, go coilover.=))

  10. the Nefyn cat

    the Nefyn cat Zorg Guru (IV)
    Supporter

    Joined:
    Oct 19, 2014
    Messages:
    2,909
    Likes Received:
    1,006
    Trophy Points:
    158
    Location:
    Actually in Nefyn. My, that took a while.
    Model of Z:
    2.2i Sport
    Entirely happy with Spax springs and dampers, got 19s on and a nice comfy ride.

    Not very likely given the age of our cars, unless someone's changed them fairly recently.

    • Agree Agree x 1
  11. t-tony

    t-tony Zorg Expert (II)
    Supporter British Zeds #ZedShed

    Joined:
    Dec 31, 2013
    Messages:
    36,961
    Likes Received:
    17,008
    Trophy Points:
    226
    Location:
    Torksey Lock,Lincoln, England
    Model of Z:
    Z4 3.0 Auto
    My Z3 had K&W coil overs on and the handling was great.
    I put Eibach Pro springs on my Z4 with existing shockers (low mileage) and it gives a slightly less bumpy ride but also great handling.
    Shirl prefers it to the Z3.

    Tony.

  12. FRANKIE

    FRANKIE Zorg Guru (V)
    American Zeds The M44 Massive

    Joined:
    Sep 2, 2013
    Messages:
    6,065
    Likes Received:
    3,691
    Trophy Points:
    193
    Location:
    Egg Harbor Township, New Jersey, USA
    Model of Z:
    Z3
    I able to lower the car for next to nothing. Well, perhaps the cost of a little more gas. When I want to get it REALLY low to the ground, I take the wife for a ride.................Frankie

    • Funny Funny x 1
  13. the Nefyn cat

    the Nefyn cat Zorg Guru (IV)
    Supporter

    Joined:
    Oct 19, 2014
    Messages:
    2,909
    Likes Received:
    1,006
    Trophy Points:
    158
    Location:
    Actually in Nefyn. My, that took a while.
    Model of Z:
    2.2i Sport
    At this time of year the ice is going to be thin.:whistle:

  14. FRANKIE

    FRANKIE Zorg Guru (V)
    American Zeds The M44 Massive

    Joined:
    Sep 2, 2013
    Messages:
    6,065
    Likes Received:
    3,691
    Trophy Points:
    193
    Location:
    Egg Harbor Township, New Jersey, USA
    Model of Z:
    Z3
    It's thin around here most of the year..............................

    • Funny Funny x 1
  15. t-tony

    t-tony Zorg Expert (II)
    Supporter British Zeds #ZedShed

    Joined:
    Dec 31, 2013
    Messages:
    36,961
    Likes Received:
    17,008
    Trophy Points:
    226
    Location:
    Torksey Lock,Lincoln, England
    Model of Z:
    Z4 3.0 Auto
    Me, I keep away from the water. . . . . . .

    Tony.

  16. Mario

    Mario Zorg Legend

    Joined:
    Jun 18, 2014
    Messages:
    503
    Likes Received:
    175
    Trophy Points:
    75
    Toby have you completed the suspension upgrade? If not I am selling some eibach Pro powder coated for 80 quid that's a minus 30mm drop if that works.
