How to change the Digital clock into Analog clock?

Discussion in 'Z3 Roadster & Coupé' started by sobe_on, Mar 6, 2013.

  1. sobe_on

    sobe_on Regular Member

    Joined:
    Sep 21, 2012
    Messages:
    18
    Likes Received:
    5
    Trophy Points:
    19
    Hi

    I have bought the facelift console panel with the analog clock to change my old one but I got the problem and hope anyone can help : (

    1. The Uncoded clock have 3 insert but I found 4 wire for the old Digital clock.
    2. The function of these 4wires I can check by myself (power/ ground....etc), but the question is I can't check the function for that 3 hold on the analog clock ,

    so, any dude can tell me this matter ?
    [​IMG]
    [​IMG]
    1 = ?
    2 = ?
    3 = ?

  2. Zeti

    Zeti Zorg Guru (III)
    Supporter Romanian Zeds The M44 Massive

    Joined:
    Oct 9, 2013
    Messages:
    2,493
    Likes Received:
    1,852
    Trophy Points:
    147
    Location:
    Bucuresti/ Romania
    Model of Z:
    Z3 roadster 1.9
    Hi Sobe_on,
    I imagine that you have solved the problem in the past year:happy: , but just in case somebody else wants to make the same change, here are the answers:
    3) the clock connector http://www.realoem.com/bmw/showparts.do ... g=61&fg=15
    code. 61136931929
    PIN 1 - wire red/ orange
    PIN 2 - wire brown
    PIN 3 - wire red/ purple


    I always found very unappropiate the digital clock on the dashboard of the Z3, a so classic car! Fortunately BMW noticed the failure :pompus: and on the face lift model they changed the digital with analog clock which is much, much better. If you take into consideration that brightness of the digital clock is halved when you turn on the car lights, the digital clock is useless during day light! :grumpy:
    I suffered always because of the look of the digital clock but when I have seen on Ebay the armwatch "BMW Z3 Individual", limited edition 5000 units, having the same design with the analog clock Z3, but smaller diameter I start to think to the following project, that I realized last week end: I replaced the digital clock with a hand watch with some hobby labourforce.
    Being a little bit lazy :rolleyes: and not willing to spend too much money (for the console, clock OEM, connector) I made a reversible proposal which change the dashboard look and allowed me to read the clock during the day trip. (For eagle eyes has even the calender day number!) .
    - a year ago, I bought from Ebay the watch with 20 EUR;

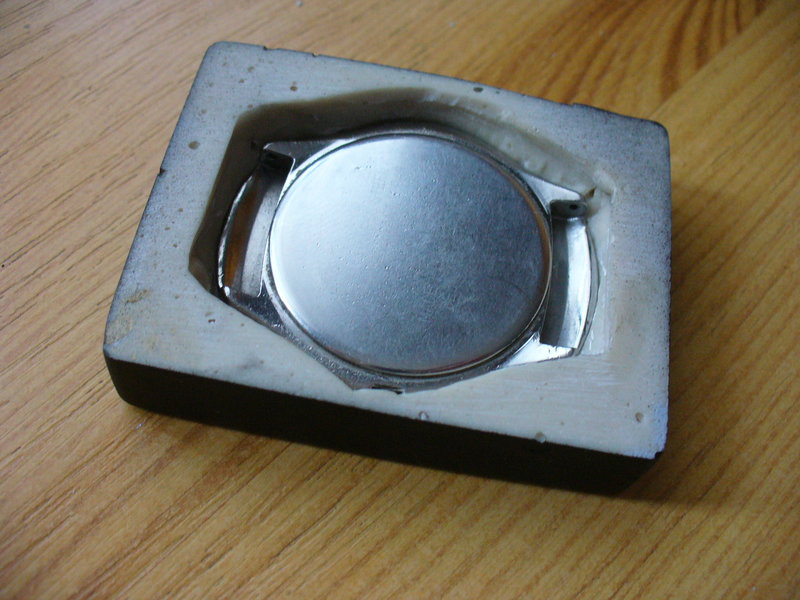

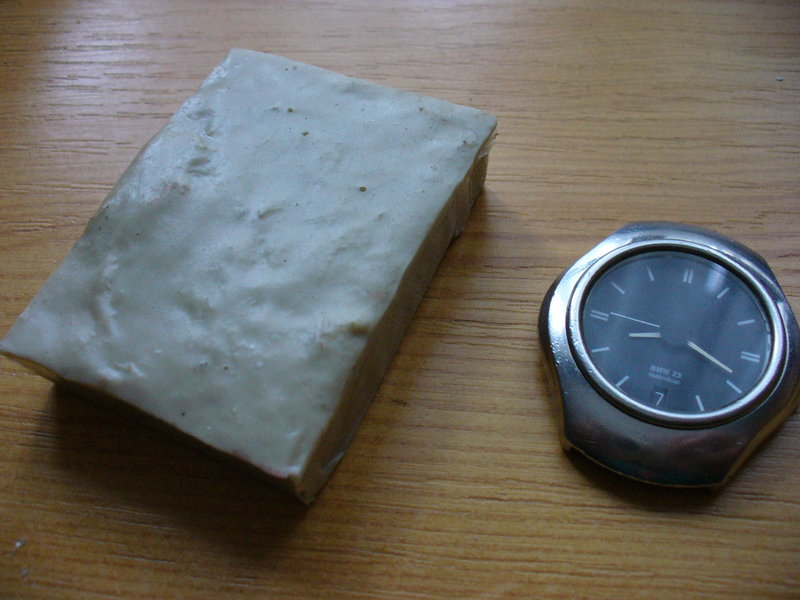

    - I made a plastic mould and a fiberglass box for the clock;
    - I sanded and adjusted the box to the requested dimensions and sprayed with primer and black mat.
    - some safety brackets for the rear side and here it is.......
    Do you think it's acceptable or it's more a kitsch?:)

    #2 Zeti, Feb 10, 2014
    Last edited: Mar 8, 2014
    • Like Like x 11
    • Agree Agree x 1
  3. FRANKIE

    FRANKIE Zorg Guru (V)
    American Zeds The M44 Massive

    Joined:
    Sep 2, 2013
    Messages:
    5,769
    Likes Received:
    3,587
    Trophy Points:
    193
    Location:
    Egg Harbor Township, New Jersey, USA
    Model of Z:
    Z3
    WOW!!!!!!!! What a beautiful job!!!!!!!!

  4. t-tony

    t-tony Zorg Expert (I)
    Supporter British Zeds #ZedShed

    Joined:
    Dec 31, 2013
    Messages:
    33,819
    Likes Received:
    15,839
    Trophy Points:
    220
    Location:
    Torksey Lock,Lincoln, England
    Model of Z:
    Z4 3.0 Auto
    Cool job Zeti and just goes to show there is no limit to our abilities and imagination.:scorecard:

  5. Stormy_be

    Stormy_be Zorg Guru (I)
    Belgian Zeds

    Joined:
    Oct 29, 2013
    Messages:
    745
    Likes Received:
    470
    Trophy Points:
    97
    Location:
    Belgium, ieper
    Model of Z:
    Z3 2.8 Roadster
    Really nicely done

  6. Mint

    Mint Zorg Expert (I)
    Supporter British Zeds East Anglian Crew

    Joined:
    Sep 23, 2012
    Messages:
    9,983
    Likes Received:
    6,720
    Trophy Points:
    212
    Location:
    Staffordshire, UK
    Model of Z:
    1st Z3 | 2.2 | Sport | Individual 2nd - Z3 | 3.0 | Sport
    Brilliant job Zeti, well done. That's a credit to your ingenuity.

  7. Zeti

    Zeti Zorg Guru (III)
    Supporter Romanian Zeds The M44 Massive

    Joined:
    Oct 9, 2013
    Messages:
    2,493
    Likes Received:
    1,852
    Trophy Points:
    147
    Location:
    Bucuresti/ Romania
    Model of Z:
    Z3 roadster 1.9
    Thanks guys! :thankyou: "Winter work" when I'm nostalgic for the wheel drive of the Z, but in two months we will be back on the road again!:)

  8. joey

    joey Zorg Addict
    British Zeds The M44 Massive

    Joined:
    May 17, 2013
    Messages:
    411
    Likes Received:
    208
    Trophy Points:
    59
    Location:
    Guildford
    Model of Z:
    1.9 16v M44
    Nice! Really nice...:scorecard:

  9. Rudyrov

    Rudyrov Zorg Legend
    American Zeds

    Joined:
    Jan 29, 2014
    Messages:
    232
    Likes Received:
    108
    Trophy Points:
    69
    Location:
    Bothell, Washington
    Model of Z:
    2.8 L Roadster
    I have long had the same complaints about the digital clock. Thank you for showing me the light!

  10. oldcarman

    oldcarman Zorg Guru (V)
    Supporter Canadian Zeds The M44 Massive

    Joined:
    Feb 11, 2014
    Messages:
    9,991
    Likes Received:
    3,617
    Trophy Points:
    177
    Location:
    Pine Falls Manitoba can.
    Model of Z:
    1.9 M44
    I can't wait till my car gets here. That was one problem that needed solving that I noted in the pics the seller sent me. Can't figure how a rectangled digital anything got approved for production when everything else is circular. Nice job. JIM

  11. zerolam

    zerolam Regular Member

    Joined:
    Feb 8, 2012
    Messages:
    3
    Likes Received:
    1
    Trophy Points:
    13
    i have installed E30 clock into my Z3. Although need a little bit modification the panel, quite happy the outcome.

    • Thank You! Thank You! x 1
  12. Dino D

    Dino D Zorg Guru (IV)
    British Zeds

    Joined:
    Mar 28, 2014
    Messages:
    3,729
    Likes Received:
    2,284
    Trophy Points:
    170
    Location:
    Kent
    Model of Z:
    2.8 Manual
  13. upstream

    upstream Regular Member
    The M44 Massive

    Joined:
    Sep 5, 2014
    Messages:
    74
    Likes Received:
    28
    Trophy Points:
    21
    Wow @Zeti - that is beautiful! I want one :)

    #13 upstream, Dec 5, 2014
    Last edited: Dec 5, 2014
  14. oldcarman

    oldcarman Zorg Guru (V)
    Supporter Canadian Zeds The M44 Massive

    Joined:
    Feb 11, 2014
    Messages:
    9,991
    Likes Received:
    3,617
    Trophy Points:
    177
    Location:
    Pine Falls Manitoba can.
    Model of Z:
    1.9 M44
    @zerolam, can you please post a pic as well as your procedure?? JIM

  15. Zeti

    Zeti Zorg Guru (III)
    Supporter Romanian Zeds The M44 Massive

    Joined:
    Oct 9, 2013
    Messages:
    2,493
    Likes Received:
    1,852
    Trophy Points:
    147
    Location:
    Bucuresti/ Romania
    Model of Z:
    Z3 roadster 1.9
    Yes, show it to us!:)

    • Agree Agree x 1
  16. mini

    mini Zorg Legend

    Joined:
    Nov 12, 2014
    Messages:
    211
    Likes Received:
    171
    Trophy Points:
    66
    Hate my digi clock ! Love your adaption mate !!!

    • Agree Agree x 1
    • Thank You! Thank You! x 1
  17. bonbon

    bonbon Dedicated Member

    Joined:
    Mar 13, 2012
    Messages:
    38
    Likes Received:
    12
    Trophy Points:
    40
    Location:
    Israel
    Model of Z:
    19L Auto
    I third that - Zerolam please educate us....
    I understand it involves widening the opening in the dash panel to get the bigger E30 clock to fit in the rectangular hole.

  18. oldcarman

    oldcarman Zorg Guru (V)
    Supporter Canadian Zeds The M44 Massive

    Joined:
    Feb 11, 2014
    Messages:
    9,991
    Likes Received:
    3,617
    Trophy Points:
    177
    Location:
    Pine Falls Manitoba can.
    Model of Z:
    1.9 M44
    I've bought an Anologue clock in a rectangular housing from a 97 e36 318i SE saloon. I can't wait for it to arrive so I can see how close it is to fitting the hole the digital is occupying now. Can't seen to figure out how to get a pic loaded on my phone but will post one if I figure it out! JIM

    #18 oldcarman, Dec 13, 2014
    Last edited: Dec 13, 2014
  19. bonbon

    bonbon Dedicated Member

    Joined:
    Mar 13, 2012
    Messages:
    38
    Likes Received:
    12
    Trophy Points:
    40
    Location:
    Israel
    Model of Z:
    19L Auto
    Upon inspiration from ZETI - I luckily found a rectangular analog wristwatch which seemed to be a perfect fit to modify an old defective Z3 digital clock '98.
    The watch face is 38mm high and 36mm wide (Q&Q Quartz model #VR30J002Y)
    eg http://www.skroutz.gr/s/5254010/Q-Q-VR30J002Y.html?keyphrase=vr30j002y
    I gutted the digital clock.
    [​IMG]
    I proceeded to rework the front casing to accommodate the watch. (Open the front window and remove ribbing along the inner edges). One can machine it properly or botch it with a file & the help of a soldering iron.
    I also removed a notch for the time adjuster knob and added some support inside the barely-modified rear enclosure (only removed a notch for the knob)
    [​IMG]
    Here is the final product. An improvement IMO.
    [​IMG]
    After 7 years I can finally see the time before nightfall :)
    [​IMG]
    BTW - if you cannot find the above mentioned watch - there is another watch that will work Q&Q # VQ92J002Y. It has a 38mmx38mm - although it will only fit into the front fascia and not inside the back - if glued into the front fascia -it can be supported by the ledges in the console.
    http://www.amazon.com/Black-Square-Plastic-Unisex-VQ92J002Y/dp/B007TCHG40
    [​IMG]

    • Like Like x 4
  20. Zeti

    Zeti Zorg Guru (III)
    Supporter Romanian Zeds The M44 Massive

    Joined:
    Oct 9, 2013
    Messages:
    2,493
    Likes Received:
    1,852
    Trophy Points:
    147
    Location:
    Bucuresti/ Romania
    Model of Z:
    Z3 roadster 1.9
    It looks perfect and much easier to adapt! Congratulations!:)

    • Like Like x 1
