    I absolutely agree Duncan, if anyone up towards Lincoln would like to arrange this sort of day for these types of repairs, problem solving, I have the space and tools etc.

    Tony

    • Like Like x 2
  2. GazHyde

    GazHyde The Gaz Monkey
    Staff Member Administrator Global Moderator British Zeds

    Joined:
    Dec 2, 2011
    Messages:
    15,248
    Likes Received:
    9,469
    Trophy Points:
    226
    Location:
    Newbury, Berkshire
    Model of Z:
    BMW Z4 3.0Si Sport
    Duly noted. Lincolnshire seat bush and Z3 fettling venue sorted :)

    • Like Like x 2
  3. MikeE89

    MikeE89 Regular Member
    The West Country

    Joined:
    Jul 29, 2013
    Messages:
    18
    Likes Received:
    14
    Trophy Points:
    19
    La vida diver also showed me how to use animated icons so here goes as it makes a change from rants about N52 oil sensors:coolsteer)

  4. GazHyde

    GazHyde The Gaz Monkey
    Staff Member Administrator Global Moderator British Zeds

    Joined:
    Dec 2, 2011
    Messages:
    15,248
    Likes Received:
    9,469
    Trophy Points:
    226
    Location:
    Newbury, Berkshire
    Model of Z:
    BMW Z4 3.0Si Sport
    Well that was a fun journey this morning. Looks like one of the new replacement shock top mounts has failed. About 15 miles from home after dropping my daughter at school, and started getting a banging when the passenger rear wheel hit any imperfection in the road. Felt like the rear end was going to fall off when I hit a manhole cover... Couldn't see anything by the side of the road so limped home carefully, but noisily!

    Couple of likely options to check, first being the shock top mounts (I could see the shock was still fixed at the bottom)

    Lets have a quick round of "spot the difference"... No prizes... It's just for fun :p

    Drivers side:
    2015-01-06 10.25.55.jpg

    Passenger side:
    2015-01-06 10.26.02.jpg

    • Funny Funny x 1
  5. Brian H

    Brian H Zorg Guru (V)
    British Zeds Scottish Zeds

    Joined:
    Dec 5, 2011
    Messages:
    3,540
    Likes Received:
    2,570
    Trophy Points:
    195
    Location:
    Killin
    Model of Z:
    E36/7 3.0i - E85 Z4///M
    Reason its failed is that you are missing a plate (11) and washer gasket (17) that sits between the nut and the rubber mount. The plate stops the rubber portion of the mount from being pulled through, you need to get the plates on both side ASAP.

    [​IMG] Single components for rear spring strut - BMW parts catalog

  6. GazHyde

    GazHyde The Gaz Monkey
    Staff Member Administrator Global Moderator British Zeds

    Joined:
    Dec 2, 2011
    Messages:
    15,248
    Likes Received:
    9,469
    Trophy Points:
    226
    Location:
    Newbury, Berkshire
    Model of Z:
    BMW Z4 3.0Si Sport
    @Brian H - don't recall seeing those when changing them over... Would they be supplied with the replacement top mounts, or I would have to reuse the existing ones?

  7. Brian H

    Brian H Zorg Guru (V)
    British Zeds Scottish Zeds

    Joined:
    Dec 5, 2011
    Messages:
    3,540
    Likes Received:
    2,570
    Trophy Points:
    195
    Location:
    Killin
    Model of Z:
    E36/7 3.0i - E85 Z4///M

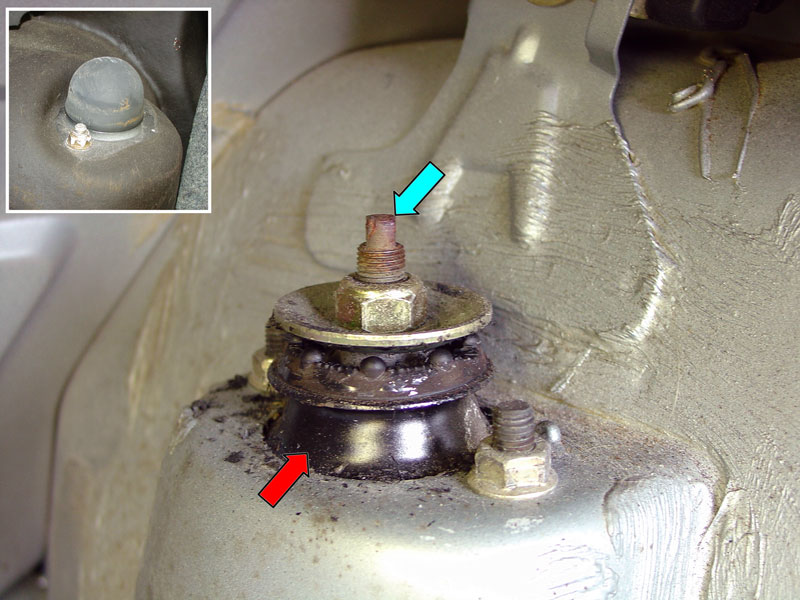

    I think they are part of the shock Gary, essentially the plates are a large cupped washer the same diameter as the metal part of the shock mount.

    Pic pinched from the internet to help. Different car but you get the idea.

    [​IMG]

    Edit: Are you sure they have not been mounted on the underside of the shock?

    #67 Brian H, Jan 6, 2015
    Last edited: Jan 6, 2015
  8. Lee

    Lee Zorg Guru (V)
    British Zeds #ZedShed M Power

    Joined:
    Mar 26, 2014
    Messages:
    3,096
    Likes Received:
    3,920
    Trophy Points:
    187
    Location:
    Basingstoke
    Model of Z:
    Z4 Coupe
    I do recall seeing them, i also remember the shocks having to come off becuase the dust covers were not put on. I bet these are somewhere under your boot carpet.

  9. GazHyde

    GazHyde The Gaz Monkey
    Staff Member Administrator Global Moderator British Zeds

    Joined:
    Dec 2, 2011
    Messages:
    15,248
    Likes Received:
    9,469
    Trophy Points:
    226
    Location:
    Newbury, Berkshire
    Model of Z:
    BMW Z4 3.0Si Sport
    Thanks Brian :)

    We had the shock mounts in and out a couple of times while working, so I probably got a bit sloppy. That'll teach me. Gonna have to try and locate a couple of replacements. :bashhead:

    Gary

  10. GazHyde

    GazHyde The Gaz Monkey
    Staff Member Administrator Global Moderator British Zeds

    Joined:
    Dec 2, 2011
    Messages:
    15,248
    Likes Received:
    9,469
    Trophy Points:
    226
    Location:
    Newbury, Berkshire
    Model of Z:
    BMW Z4 3.0Si Sport
    I'll put my coat on and have a good look in a mo...

    • Like Like x 1
  11. Brian H

    Brian H Zorg Guru (V)
    British Zeds Scottish Zeds

    Joined:
    Dec 5, 2011
    Messages:
    3,540
    Likes Received:
    2,570
    Trophy Points:
    195
    Location:
    Killin
    Model of Z:
    E36/7 3.0i - E85 Z4///M
  12. GazHyde

    GazHyde The Gaz Monkey
    Staff Member Administrator Global Moderator British Zeds

    Joined:
    Dec 2, 2011
    Messages:
    15,248
    Likes Received:
    9,469
    Trophy Points:
    226
    Location:
    Newbury, Berkshire
    Model of Z:
    BMW Z4 3.0Si Sport
    Stripped the boot of the car, and no sign of them! Definitely weren't left on the shocks...

    Will try and contact spursfan, and see if he has some in his Aladdin's cave!

  13. Aceman

    Aceman Moderator
    British Zeds 3rd Party Trader

    Joined:
    Dec 5, 2011
    Messages:
    2,222
    Likes Received:
    715
    Trophy Points:
    156
    Location:
    Wakefield
    Model of Z:
    ///M Roadster
    I don't think the washers come with new shocks as the ones I have done in the past both on present ///M and my previous 2.8 didn't. Could have been an expensive mistake Gary !

    • Agree Agree x 1
  14. GazHyde

    GazHyde The Gaz Monkey
    Staff Member Administrator Global Moderator British Zeds

    Joined:
    Dec 2, 2011
    Messages:
    15,248
    Likes Received:
    9,469
    Trophy Points:
    226
    Location:
    Newbury, Berkshire
    Model of Z:
    BMW Z4 3.0Si Sport
    Totally agree Ian. If I had remember to fit the dirt covers on the shocks the first time round the mounts wouldn't have needed to come off!

    Luckily I could nurse the car home safely (albeit noisily).

  15. t-tony

    t-tony Zorg Expert (I)
    Supporter British Zeds #ZedShed

    Joined:
    Dec 31, 2013
    Messages:
    32,647
    Likes Received:
    15,339
    Trophy Points:
    220
    Location:
    Torksey Lock,Lincoln, England
    Model of Z:
    Z4 3.0 Auto
    If all you need are the large cupped washers Gaz I might easily have some spare ones at work. If you can't get any let me know what size and hole diameter they are.

    Tony.

    • Like Like x 1
  16. TaffZee

    TaffZee Zorg Guru (V)
    Supporter British Zeds

    Joined:
    Dec 5, 2011
    Messages:
    2,084
    Likes Received:
    1,363
    Trophy Points:
    183
    Location:
    Near Llangollen North Wales
    Model of Z:
    Z4 3.0 SE
    What can one say Mr Hyde

  17. GazHyde

    GazHyde The Gaz Monkey
    Staff Member Administrator Global Moderator British Zeds

    Joined:
    Dec 2, 2011
    Messages:
    15,248
    Likes Received:
    9,469
    Trophy Points:
    226
    Location:
    Newbury, Berkshire
    Model of Z:
    BMW Z4 3.0Si Sport
    Well, as everyone has been so polite so far... I'm hoping we can keep the happy vibe going :angelic: :D

    • Funny Funny x 1
  18. Aceman

    Aceman Moderator
    British Zeds 3rd Party Trader

    Joined:
    Dec 5, 2011
    Messages:
    2,222
    Likes Received:
    715
    Trophy Points:
    156
    Location:
    Wakefield
    Model of Z:
    ///M Roadster
    Blame your alter ego Mr. Jeckle for not fitting the washers. :ymdevil:

  19. hard top

    hard top Zorg Expert (I)
    Dutch Zeds The M44 Massive

    Joined:
    Dec 5, 2011
    Messages:
    20,779
    Likes Received:
    6,064
    Trophy Points:
    213
    Location:
    Netherlands
    Bloody hell, I would not have owned up to that!! I would have blamed @Lee ........:ymdevil:

    • Funny Funny x 1
  20. badman gee

    badman gee Guest

    Ha, I hope BM Babes car doesn't fall apart :ymdevil:
