Armrests

Discussion in 'Z3 Roadster & Coupé' started by metalmickey, May 22, 2014.

  1. metalmickey

    metalmickey Zorg Addict
    The M44 Massive

    Joined:
    Feb 25, 2014
    Messages:
    128
    Likes Received:
    76
    Trophy Points:
    45
    Location:
    Walton on Thames, Surrey
    Model of Z:
    3
    Hi Guys
    Just noticed the cupholder on Tony's Zed and his comments. How does this piece fit onto the existing central column? I have ashtray (don't smoke) in which I keep the office keys and an elongated tray for sunglasses etc.
    I could use this space much better for my Costa!
    MM

  2. board

    board Administrator
    Staff Member Administrator Global Moderator British Zeds M Power

    Joined:
    Dec 2, 2011
    Messages:
    1,393
    Likes Received:
    81
    Trophy Points:
    88
    Location:
    Cuiaba
    Model of Z:
    M Roadster
    Hi MM,

    Unscrew the ashtray and screw in the cup holder unit and slot in the cup holders should do the trick :)

    • Like Like x 1
  3. t-tony

    t-tony Zorg Expert (I)
    Supporter British Zeds #ZedShed

    Joined:
    Dec 31, 2013
    Messages:
    32,647
    Likes Received:
    15,339
    Trophy Points:
    220
    Location:
    Torksey Lock,Lincoln, England
    Model of Z:
    Z4 3.0 Auto
    I did some modifications on the mounting of the cup holder onto the original centre console as it is very insecure if you rely on the fixings it comes with. I will post some photo's when I locate them. Feel free to remind me over this weekend.

    Tony.

  4. metalmickey

    metalmickey Zorg Addict
    The M44 Massive

    Joined:
    Feb 25, 2014
    Messages:
    128
    Likes Received:
    76
    Trophy Points:
    45
    Location:
    Walton on Thames, Surrey
    Model of Z:
    3
    Thanks Guys
    Will contact Sopers for a price for the unit. Look forward to the pics, Tony.
    MM (Mike)

  5. t-tony

    t-tony Zorg Expert (I)
    Supporter British Zeds #ZedShed

    Joined:
    Dec 31, 2013
    Messages:
    32,647
    Likes Received:
    15,339
    Trophy Points:
    220
    Location:
    Torksey Lock,Lincoln, England
    Model of Z:
    Z4 3.0 Auto
    Hey mate, before you commit check out Southern Boy on the zroadster.net forum He supplied my armrest but he is now producing on which doesn't require the BMW cup holder.( £50.00 ) If you send him a PM quote me as recommendation.

  6. GazHyde

    GazHyde The Gaz Monkey
    Staff Member Administrator Global Moderator British Zeds

    Joined:
    Dec 2, 2011
    Messages:
    15,248
    Likes Received:
    9,469
    Trophy Points:
    226
    Location:
    Newbury, Berkshire
    Model of Z:
    BMW Z4 3.0Si Sport
    @Southernboy is a member here so you can message him directly. He has already asked about selling his stuff here, and he has been told he is welcome to ;)

  7. t-tony

    t-tony Zorg Expert (I)
    Supporter British Zeds #ZedShed

    Joined:
    Dec 31, 2013
    Messages:
    32,647
    Likes Received:
    15,339
    Trophy Points:
    220
    Location:
    Torksey Lock,Lincoln, England
    Model of Z:
    Z4 3.0 Auto
    Hi Gaz, sorry I didn't realise Barry was on here, I've not seen him post. I for one can vouch for his item.:)

    • Agree Agree x 1
  8. GazHyde

    GazHyde The Gaz Monkey
    Staff Member Administrator Global Moderator British Zeds

    Joined:
    Dec 2, 2011
    Messages:
    15,248
    Likes Received:
    9,469
    Trophy Points:
    226
    Location:
    Newbury, Berkshire
    Model of Z:
    BMW Z4 3.0Si Sport
    I've split the armrest related posts in to their own thread ;)

  9. t-tony

    t-tony Zorg Expert (I)
    Supporter British Zeds #ZedShed

    Joined:
    Dec 31, 2013
    Messages:
    32,647
    Likes Received:
    15,339
    Trophy Points:
    220
    Location:
    Torksey Lock,Lincoln, England
    Model of Z:
    Z4 3.0 Auto
    Will contact Sopers for a price for the unit. Look forward to the pics, Tony.
    MM (Mike)[/QUOTE]
    Hey MM, I found my photo's. All I did was, rather than rely on the 2 screws through the bottom of the cup holder into just thin plastic I drilled the screw holes but then made a slot near to them into which I inserted 2 speed nuts so that the mounting screws then fasten into a hardened steel clip which also "sandwiches" the plastic bottom of the cup holder. There were 2 small lugs on the bottom of the cup holder that I removed to allow flush fitting into the old centre console. Hope this makes sense.

    Tony. 009.jpg


    Attached Files:

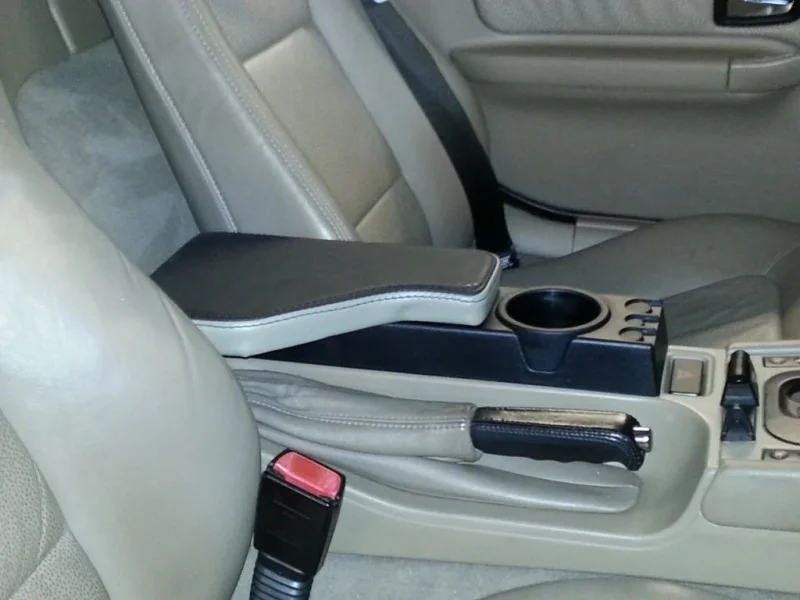

    • 010.jpg
      File size:
      104.3 KB
      Views:
      13

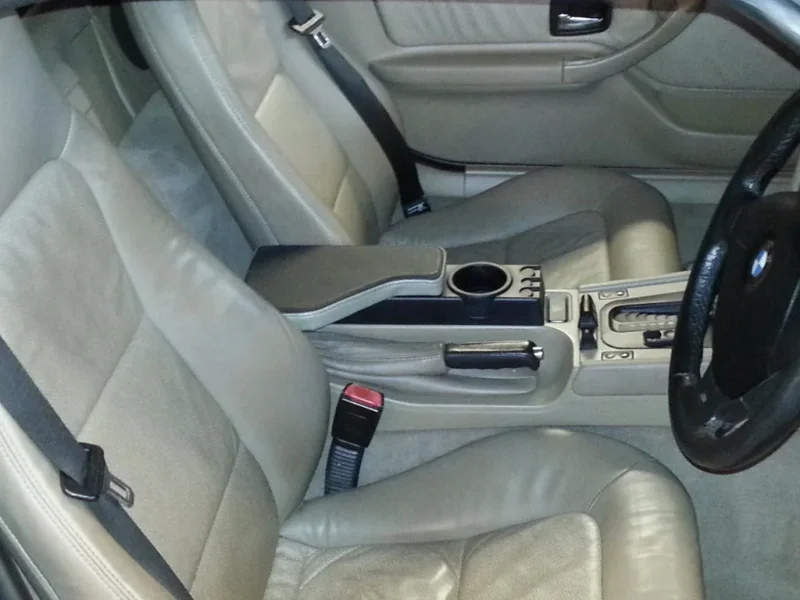

    • 011.jpg
      File size:
      119.1 KB
      Views:
      13
    #9 t-tony, May 22, 2014
    Last edited: May 22, 2014
    • Like Like x 1
  10. miller1098

    miller1098 Zorg Guru (V)
    Supporter British Zeds

    Joined:
    Mar 1, 2013
    Messages:
    3,435
    Likes Received:
    5,091
    Trophy Points:
    196
    Location:
    Carno,Welsh Wales
    Model of Z:
    M
    I've got one of Barry's armrest cup holder it's nice ,the holder is a little small for some cups

  11. Southernboy

    Southernboy Zorg Guru (II)
    3rd Party Trader

    Joined:
    Apr 27, 2012
    Messages:
    379
    Likes Received:
    389
    Trophy Points:
    100
    Hi guys..... Still finding my way around the forum.... I had a message from Kev this morning about armrests... so here goes.
    2 options. 1. the "traditional" armrest fitted to the OEM cupholder, which is great if you don't mind losing some storage. 2. I have designed an optional armrest which fits without losing any storage, and which also retains the integrity of the OEM status of your car.... As someone mentioned, the size of the cup holder might be a tad small, this can be changed to a larger size without any difficulty... I will need someone to advise me though. (measure the diameter in my existing cupholder, and let me know how much larger - in mm - it would need to be)
    All these armrests are upholstered in leather and come with fitting instructions. The OEM cupholder version requires you to buy one from wherever - eBay etc etc...
    "Traditional version"
    [​IMG]

    New version.... available in Black framework or Silver framework....
    [​IMG]

    [​IMG]

    • Like Like x 4
    • Thank You! Thank You! x 1
